3M 7010297325 – Scotchlok™ Electrical IDC 901-BULK, Run and Tap, Black, 18-14 AWG
$1,691$2,030 (-17%)

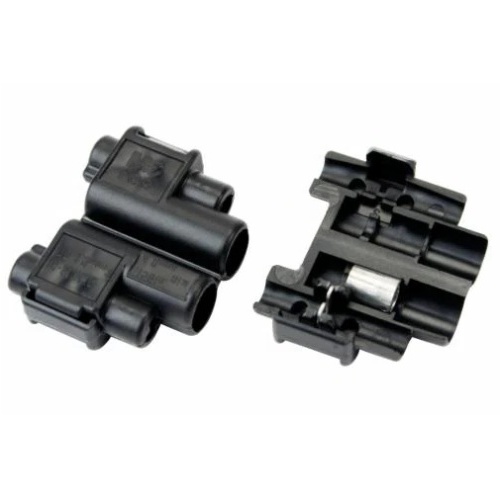

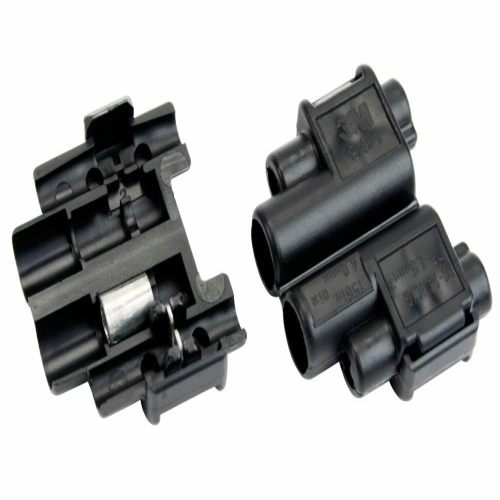

Scotchlok™ IDC Taps & Splices (901-BULK) are insulation displacement connectors used for run and tap applications. They have a maximum operating temperature of 90 ℃ (194 ℉) and accommodate conductor sizes ranging from 14 AWG to 18 AWG (1 mm² to 2.5 mm²). The connectors are made of polypropylene insulation material and…
Scotchlok™ IDC Taps & Splices (901-BULK) are insulation displacement connectors used for run and tap applications. They have a maximum operating temperature of 90 ℃ (194 ℉) and accommodate conductor sizes ranging from 14 AWG to 18 AWG (1 mm² to 2.5 mm²). The connectors are made of polypropylene insulation material and feature insulation displacement and a black color. They have a maximum recommended voltage rating of 32 V and come in a case quantity of 5000. These connectors have an insulation outer diameter of 0.145 inches (3.7 mm) and are compatible with E-9BM or 9 in. Lineman's Pliers for crimping. – 7010297325
Specifications
| Color | Black |
|---|---|
| Manufacturer | 3M |
| Sub Brand | Scotchlok™ |
| Maximum Conductor Size (Imperial) | 14 AWG |
| Maximum Conductor Size (Metric) | 2.5 mm² |
| Minimum Conductor Size (Imperial) | 18 AWG |
| Component | IDC Taps & Splice |
| Insulation Material | Polypropylene |
| Minimum Conductor Size (Metric) | 1 mm² |
Features
Black, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Accommodates 18 to 14 AWG solid/stranded (tap) and 12 to 10 AWG solid/stranded (run)
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
