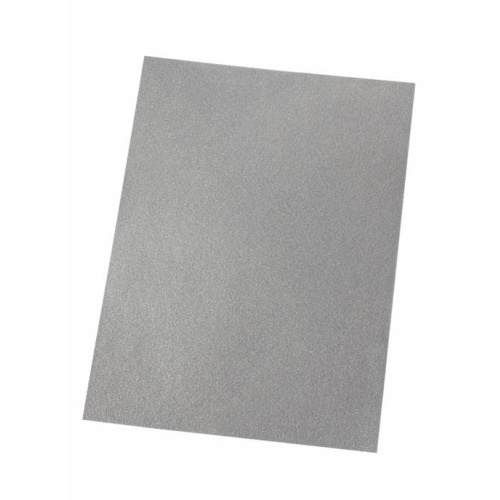

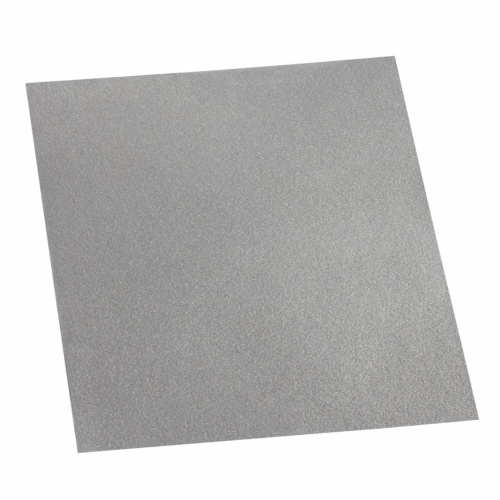

3M 7100084010 – 3M EMI Absorber AB7050HF, 210 mm x 297 mm
$3,017$3,621 (-17%)
7100084010 – AB7050HF is an aerospace & defense electronics product that is also suitable for servers & computing equipment and test & measurement equipment. It has an overall width of 8.268 in (210 mm), an overall length of 11.693 in (297 mm), and an overall thickness of 11.811 mil (0.3 mm). It operates within a…
7100084010 – AB7050HF is an aerospace & defense electronics product that is also suitable for servers & computing equipment and test & measurement equipment. It has an overall width of 8.268 in (210 mm), an overall length of 11.693 in (297 mm), and an overall thickness of 11.811 mil (0.3 mm). It operates within a frequency range of 1 GHz – 3 GHz and 100 MHz – 1 GHz.
Specifications
| Manufacturer | 3M |
|---|---|
| Component | EMI Absorber |
Features
Target absorbing performance from 800 MHz – 2.5 GHz
Broad operating frequency of 300 MHz to 4 GHz
Polymer resin sheets are flexible for consistent coverage
Filler consisting of soft metal flakes absorb noise into the polymer
Acrylic pressure sensitive adhesive makes for fast, simple application
Removable liner makes material easy to handle
Die-cuttable into shapes for precise fit
Halogen-free*
