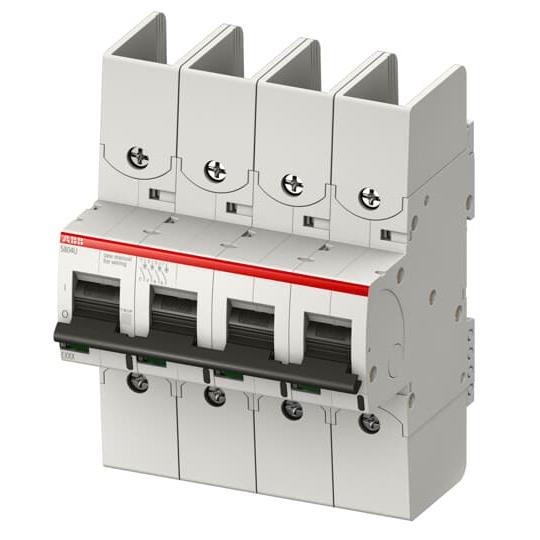

ABB S804U-UCZ10 Mini CB – 10 Amp, 4P
$1,071$1,285 (-17%)
ABB S804U-UCZ10 – Miniature Circuit Breaker – 600 VDC – 10 Amp – Four Pole – Very Fast Trip – Z Curve 2.4-3.6 x Amp Rating – UL UL 489 – Ultra Sensitive Equipment
ABB S804U-UCZ10 – Miniature Circuit Breaker – 600 VDC – 10 Amp – Four Pole – Very Fast Trip – Z Curve 2.4-3.6 x Amp Rating – UL UL 489 – Ultra Sensitive Equipment
Specifications
| Breaker Mechanism Type | Toggle |
|---|---|
| Breaker Amperage Rating | 10 Amp |
| Breaker Trip Speed | Very Fast Trip |
| Breaker Protection For | Ultra Sensitive Equipment |
| Breaker Overcurrent Protection Rating | Z Curve 2.4-3.6 X Amp Rating |
| Breaker Voltage Rating | 600 VDC |
| Breaker UL Rating | UL 489 |
| Component | Miniature Circuit Breaker |
| Manufacturer | ABB |
| Breaker Number of Poles | 1 Pole |
Features
The range of applications of the S800 high performance circuit breakers is extremely varied: from building and marine installations, industry, transport and renewable energies to uninterrupted power supply
The S800 high performance circuit breakers are reliable switches: rated ultimate short-circuit breaking capacity up to 50kA, fixed rated tripping current, current rating up to 125A, the most varied of characteristics and much more
S800 are flexible, yet at the same time meet the highest safety requirements.
