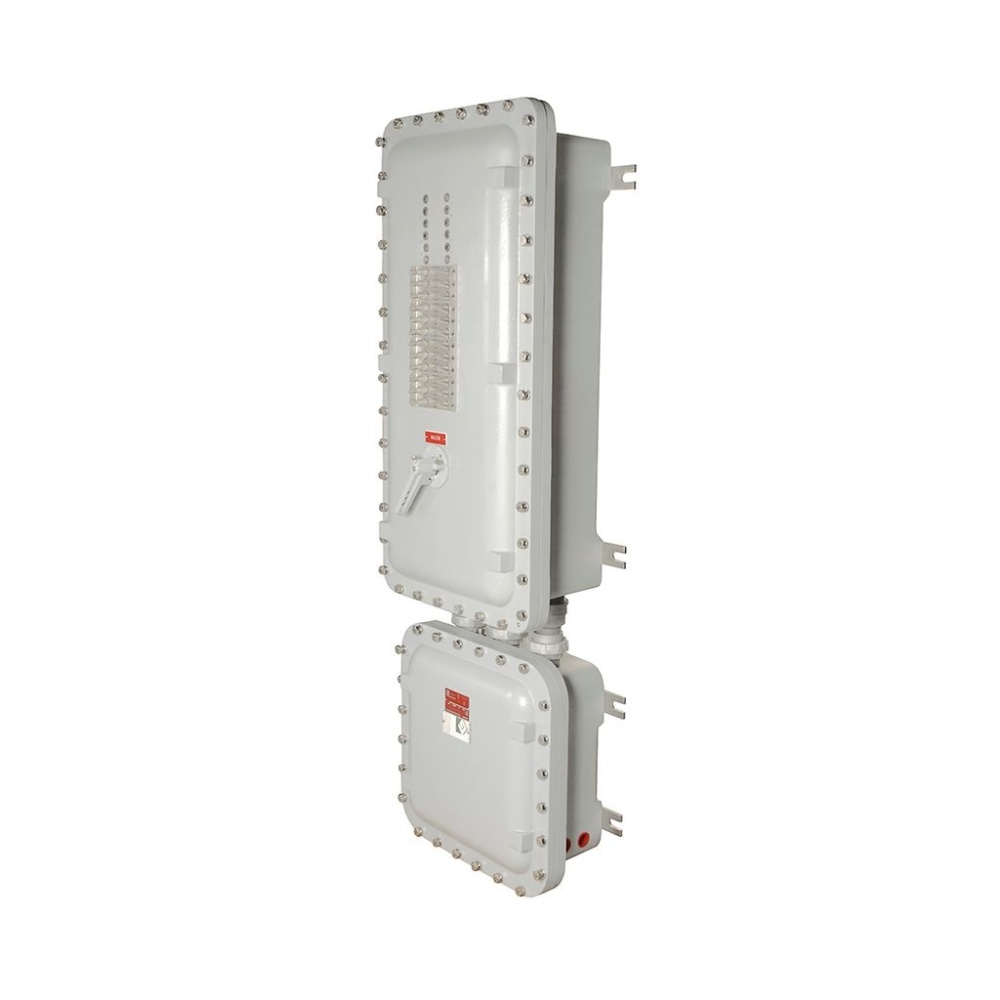

Appleton™ APPFS24C42ML PANEL BOARD FACTORY SEALED

Explosionproof, dust-ignitionproof, watertight. Features a precision machined flame path between body and cover and an O-ring gasket to insure watertight integrity.

Factory sealed

no external seals are required for most branch circuits. All conduits must be sealed adjacent to enclosure for Class I, Division 1, Groups B and C

100 Amp or 225 Amp main lug

Up to 100 Amp backfed main breaker available with main lug chassis

Up to 225 Amp main breaker available with main breaker chassis

Permits selection of 1-, 2- or 3-pole breakers

Breaker operators included as standard. Breaker operators can be padlocked in the ON or OFF position

Breakers are housed in the panel section and prewired to maximum circuit capacity, then wired to numbered terminals in the wiring compartment

Provisions for 12, 18, 24, 30, 36 and 42 circuit 1-pole chassis. Chassis assembles with mains at top (bottom optional)

Factory installed ground and neutral bar as standard

Terminal compartment is interconnected to panel section with sealing hubs, unions and poured with sealing compound

All panelboards are supplied with Cutler-Hammer B interiors
