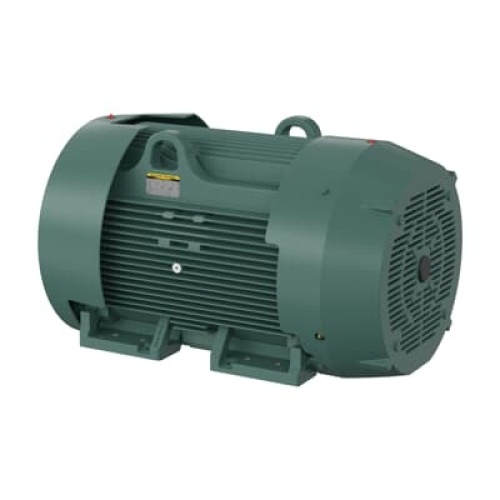

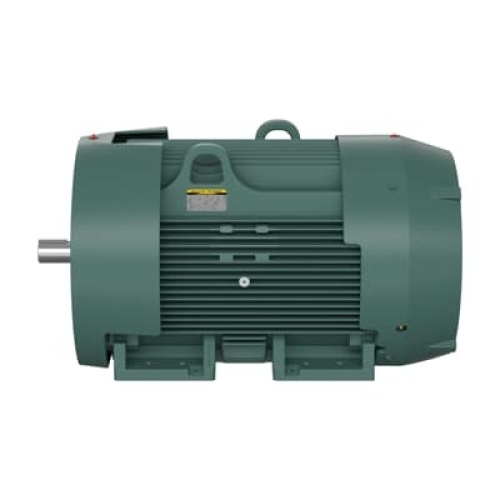

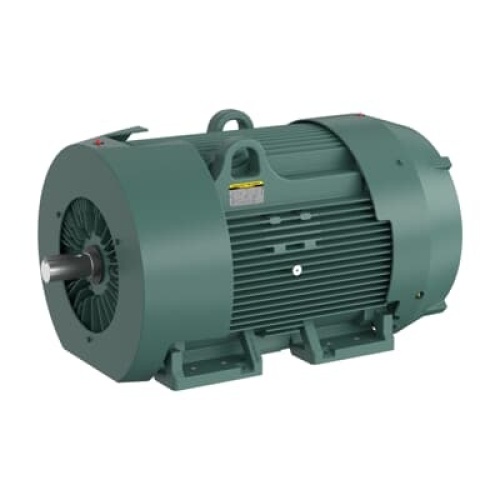

Baldor ECP84416T-5 200 HP TEFC Electric Motor, 3600 RPM, 447TS
$27,843
Baldor ECP84416T-5 3 575.0 V @ 60 HZ 200 HP @ 60 HZ 3575 RPM,3600 RPM @ 60 HZ 177 A @ 575.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Baldor ECP84416T-5 3 575.0 V @ 60 HZ 200 HP @ 60 HZ 3575 RPM,3600 RPM @ 60 HZ 177 A @ 575.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 200 HP |
| Motor Frame Model | 447TS |
| Motor Voltage | 575 Volt |
| Motor Frequency | 60 Hz |
| Motor RPM's | 3600 RPM |
| Motor Amperage (Full Load) | 177 Amp |
| Motor NEMA Design | NEMA Design F |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
Features
Heavy duty cast iron construction for the toughest applications.
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
Rated IP55 and above, these motors are designed to perform in harsh operating conditions.
Division 2 for hazardous locations.
Baldor-Reliance and ABB NEMA Motors are engineered with safety and performance in mind.
Severe duty features are intended to provide reliable performance and long operating life in the harshest environment.
