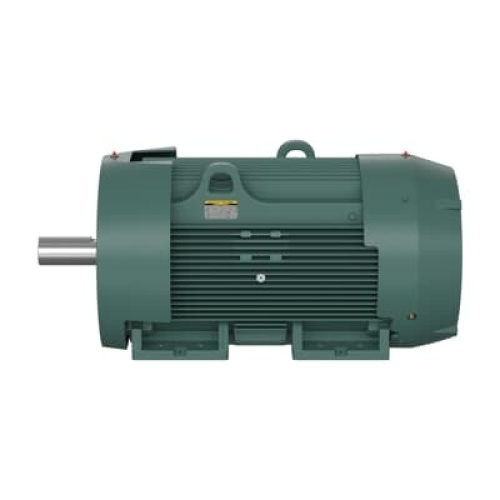

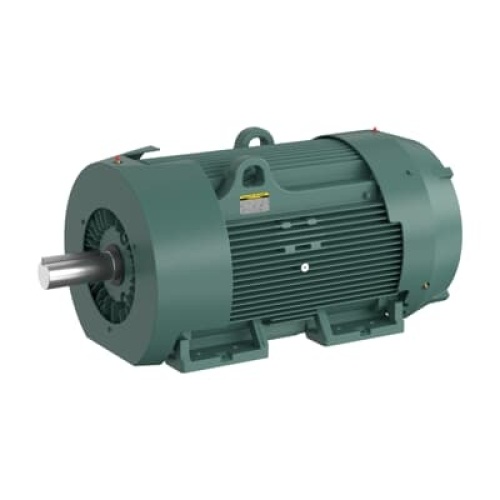

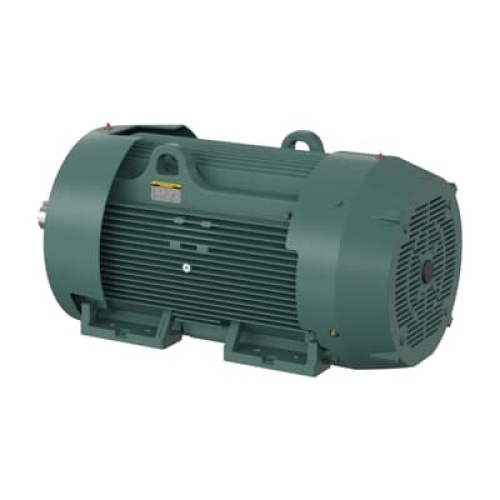

Baldor ECP844256T-4 250 HP Electric Motor, 1200 RPM, 449T TEFC
$39,269$47,123 (-17%)
Baldor ECP844256T-4 3 460.0 V @ 60 HZ 250 HP @ 60 HZ 1190 RPM,1200 RPM @ 60 HZ 287 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Baldor ECP844256T-4 3 460.0 V @ 60 HZ 250 HP @ 60 HZ 1190 RPM,1200 RPM @ 60 HZ 287 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 250 HP |
| Motor Frame Model | 449T |
| Motor RPM's | 1200 RPM |
| Motor Frequency | 60 Hz |
| Motor Voltage | 460 Volt |
| Motor NEMA Design | NEMA Design G |
| Motor Amperage (Full Load) | 287 Amp |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
Features
Heavy duty cast iron construction for the toughest applications.
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
Rated IP55 and above, these motors are designed to perform in harsh operating conditions.
Division 2 for hazardous locations.
Baldor-Reliance and ABB NEMA Motors are engineered with safety and performance in mind.
Severe duty features are intended to provide reliable performance and long operating life in the harshest environment.
