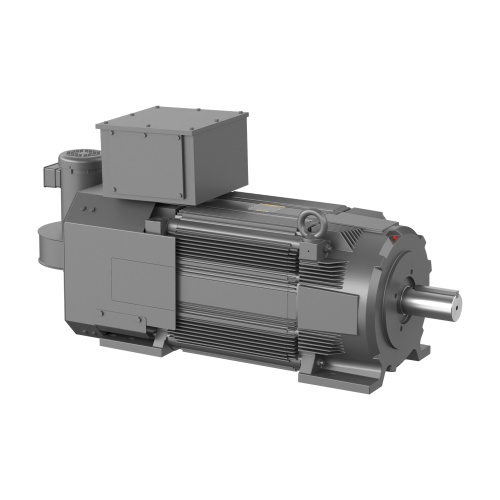

Baldor IDBRPM403004R1 300 HP TEBC Electric Motor, 460V, 1785 RPM
$35,596$42,715 (-17%)
Baldor IDBRPM403004R1 3 460.0 V @ 60 HZ 460 V @ 60 HZ 300 @ 60 HZ 300 HP @ 60 HZ 1785 RPM,1800 RPM @ 60 HZ 341 A @ 460.0 V 60.00 Hz Exposed Laminations Totally Enclosed Blower Cooled
Baldor IDBRPM403004R1 3 460.0 V @ 60 HZ 460 V @ 60 HZ 300 @ 60 HZ 300 HP @ 60 HZ 1785 RPM,1800 RPM @ 60 HZ 341 A @ 460.0 V 60.00 Hz Exposed Laminations Totally Enclosed Blower Cooled
Specifications
| Motor Voltage Phases | 3 Phase |
|---|---|
| Motor Horsepower | 300 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Motor Insulation Class | Class H Insulation |
| Motor Enclosure Type | Totally Enclosed Blower Cooled |
| Motor Frame Model | FL4034 |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Exposed Laminations |
| Motor Amperage (Full Load) | 341 Amp |
Features
60 – 1250 Hp (45 – 930kW)
TEWC (Totally enclosed water-cooled)
NEMA frame sizes: 360, 400, 440 and 5800
NEMA Premium (IE3) with induction rotor and Ultra-Premium (IE5) with permanent magnet rotor
DOL and variable speed electrical design
Continuous full load torque from zero to base speeds
IP55 (optional IP56)
Class F insulation (optional Class H)
Inverter duty per MG1 Part 31.4.4.2
Class 1 Division 2 certifications (A,B,C,D)
3 thermostats (one per phase)
Fully customizable (power ratings, base speeds, constant power speeds)
Provisions for ABB Ability™ condition monitoring
