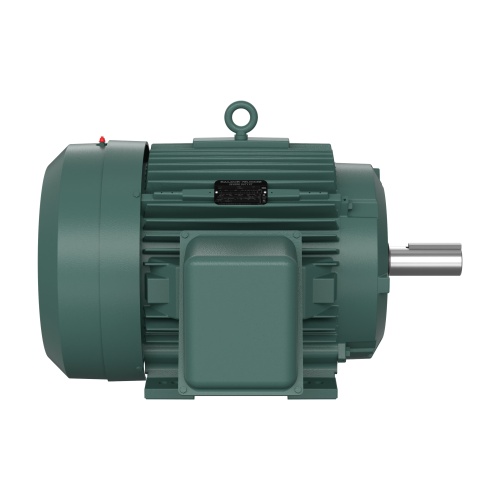

Baldor IDVSM4314T 60 HP Inverter Duty Electric Motor, 1800 RPM, 364T
$8,972$10,766 (-17%)
Baldor IDVSM4314T 3 230.0 V @ 90 HZ 230.0 V @ 60 HZ 460.0 V @ 60 HZ 460.0 V @ 90 HZ 60 HP @ 60 HZ 60 HP @ 90 HZ 1785 RPM 2675 RPM,3000 RPM @ 90 HZ 71.200 A @ 460.0 V 69.100 A @ 460.0 V 142 A @ 230.0 V 138 A @ 230.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Baldor IDVSM4314T 3 230.0 V @ 90 HZ 230.0 V @ 60 HZ 460.0 V @ 60 HZ 460.0 V @ 90 HZ 60 HP @ 60 HZ 60 HP @ 90 HZ 1785 RPM 2675 RPM,3000 RPM @ 90 HZ 71.200 A @ 460.0 V 69.100 A @ 460.0 V 142 A @ 230.0 V 138 A @ 230.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Frame Model | 364T |
| Motor Horsepower | 60 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 230 Volt |
| Motor Voltage | 460 Volt |
| Motor Amperage (Full Load) | 138 Amp |
| Motor NEMA Design | NEMA Design J |
| Motor RPM's | 3000 RPM |
| Motor Amperage (Full Load) | 142 Amp |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
| Motor Amperage (Full Load) | 71.200 Amp |
| Motor Amperage (Full Load) | 69.100 Amp |
| Motor Frequency | 90 Hz |
Features
1/3 – 500 Hp (0.25 – 373 kW)
Severe duty vector: 1 – 50 Hp (0.75 – 37.3 kW)
Standard NEMA frame 56 to 449T (IEC available)
Small ratings offered in TENV enclosures
Larger ratings offered in TEFC and TEBC enclosures
900, 1200 and 1800 RPM standard base speeds
Provisions for encode mounting
200% overload torque for 1 min at base speeds
Constant horsepower operation to 1.5x base speed
Class F or H insulation for extended motor life
Exceeds NEMA MG1 Part 31 requirements
Division 2 CSA certified
Corona-free insulation
