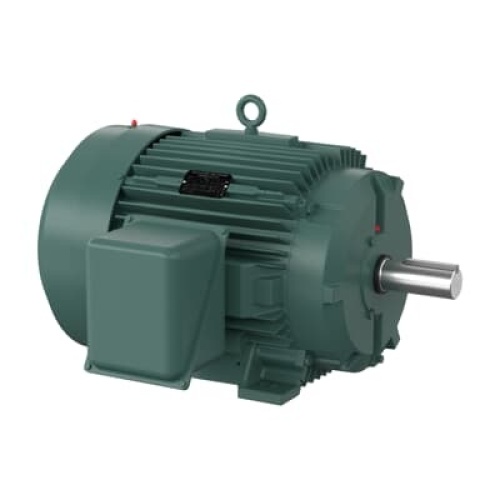

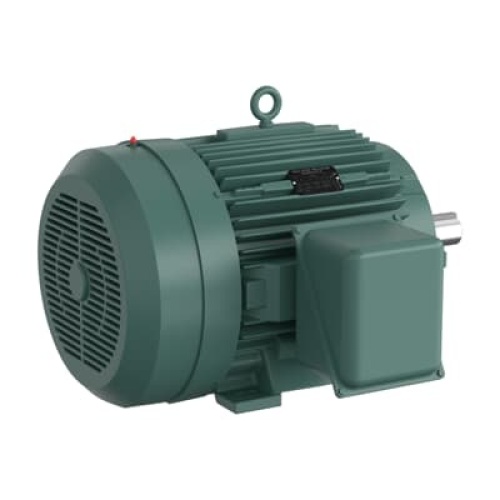

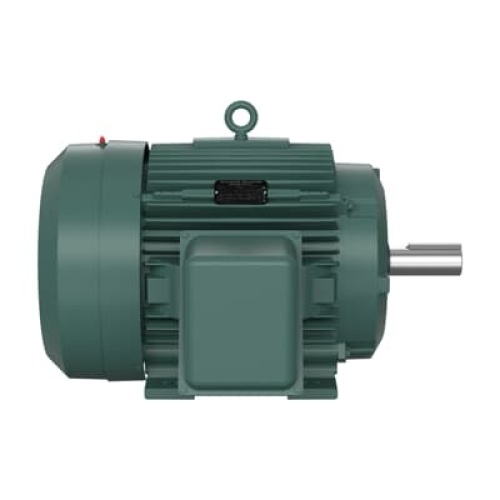

Baldor IDVSM4316T 75 HP TEFC Electric Motor, 1780 RPM, 365T Frame
$11,237$13,485 (-17%)
Baldor IDVSM4316T 3 230.0 V @ 60 HZ 460.0 V @ 60 HZ 75 HP @ 60 HZ 1780 RPM,1800 RPM @ 60 HZ 172 A @ 230.0 V 86 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Baldor IDVSM4316T 3 230.0 V @ 60 HZ 460.0 V @ 60 HZ 75 HP @ 60 HZ 1780 RPM,1800 RPM @ 60 HZ 172 A @ 230.0 V 86 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Frame Model | 365T |
| Motor Horsepower | 75 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 230 Volt |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Motor NEMA Design | NEMA Design H |
| Motor Amperage (Full Load) | 86 Amp |
| Motor Amperage (Full Load) | 172 Amp |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
Features
1/3 – 500 Hp (0.25 – 373 kW)
Severe duty vector: 1 – 50 Hp (0.75 – 37.3 kW)
Standard NEMA frame 56 to 449T (IEC available)
Small ratings offered in TENV enclosures
Larger ratings offered in TEFC and TEBC enclosures
900, 1200 and 1800 RPM standard base speeds
Provisions for encode mounting
200% overload torque for 1 min at base speeds
Constant horsepower operation to 1.5x base speed
Class F or H insulation for extended motor life
Exceeds NEMA MG1 Part 31 requirements
Division 2 CSA certified
Corona-free insulation
