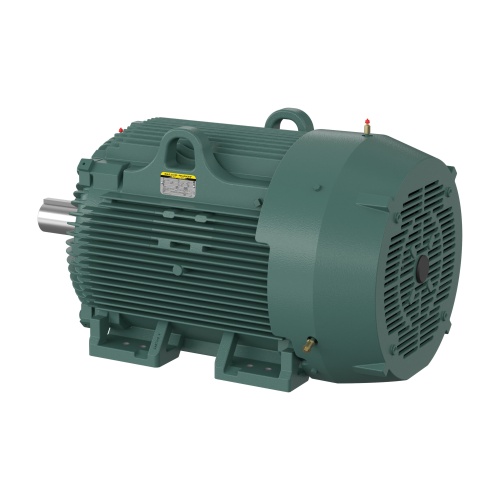

Baldor IDVSM4406T-4 150 HP Electric Motor, 1790 RPM, 445T
$21,514$25,817 (-17%)
Baldor IDVSM4406T-4 3 460.0 V @ 60 HZ 460.0 V @ 90 HZ 150 HP @ 90 HZ 150 HP @ 60 HZ 1790 RPM 2685 RPM,1800 RPM @ 60 HZ 165 A @ 460.0 V 177 A @ 460.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Baldor IDVSM4406T-4 3 460.0 V @ 60 HZ 460.0 V @ 90 HZ 150 HP @ 90 HZ 150 HP @ 60 HZ 1790 RPM 2685 RPM,1800 RPM @ 60 HZ 165 A @ 460.0 V 177 A @ 460.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Frame Model | 445T |
| Motor Horsepower | 150 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Motor Amperage (Full Load) | 177 Amp |
| Motor Amperage (Full Load) | 165 Amp |
| Motor NEMA Design | NEMA Design M |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
| Motor Frequency | 90 Hz |
Features
Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
Meets NEMA MG 1, Part 31
Continuous constant torque to zero speed.
