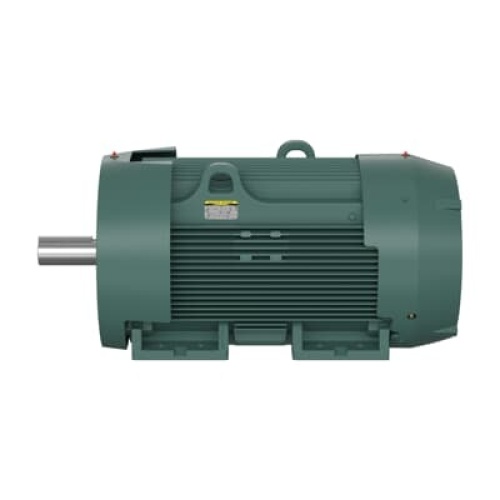

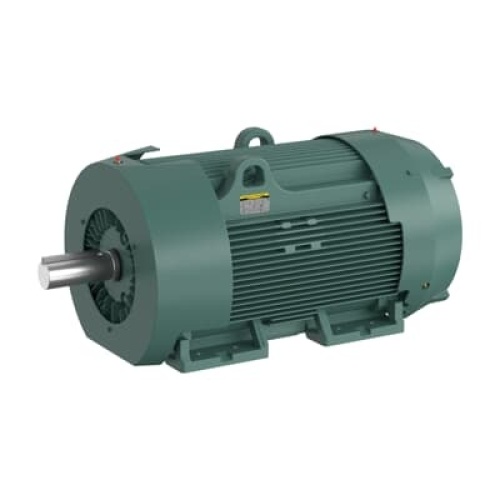

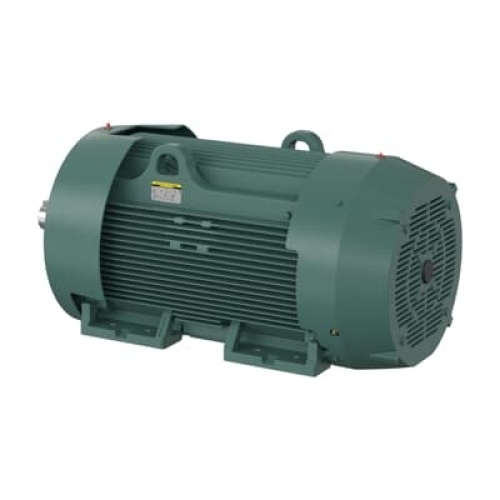

Baldor IDVSM44304T-4 300 HP Electric Motor, 1790-2685 RPM, 449T Frame
$36,028$43,234 (-17%)
Baldor IDVSM44304T-4 3 460.0 V @ 60 HZ 460.0 V @ 90 HZ 300 HP @ 90 HZ 300 HP @ 60 HZ 1790 RPM 2685 RPM,1800 RPM @ 60 HZ 322 A @ 460.0 V 338 A @ 460.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Baldor IDVSM44304T-4 3 460.0 V @ 60 HZ 460.0 V @ 90 HZ 300 HP @ 90 HZ 300 HP @ 60 HZ 1790 RPM 2685 RPM,1800 RPM @ 60 HZ 322 A @ 460.0 V 338 A @ 460.0 V 60.00 Hz 90.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
| Motor Enclosure Type | Totally Enclosed Fan Cooled |
|---|---|
| Motor Voltage Phases | 3 Phase |
| Motor Insulation Class | Class F Insulation |
| Motor Horsepower | 300 HP |
| Motor Frame Model | 449T |
| Motor Frequency | 60 Hz |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Motor Amperage (Full Load) | 322 Amp |
| Motor Amperage (Full Load) | 338 Amp |
| Motor NEMA Design | NEMA Design M |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
| Motor Frequency | 90 Hz |
Features
Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
Meets NEMA MG 1, Part 31
Continuous constant torque to zero speed.
