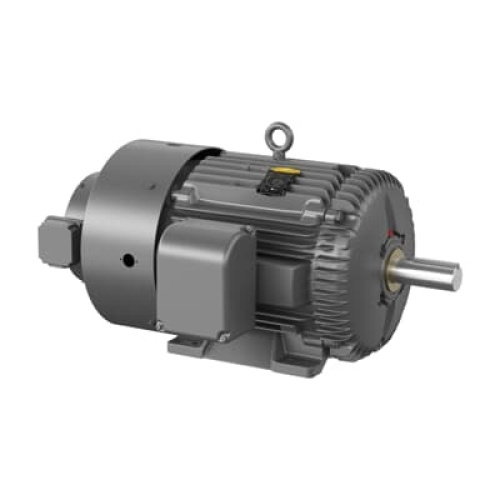

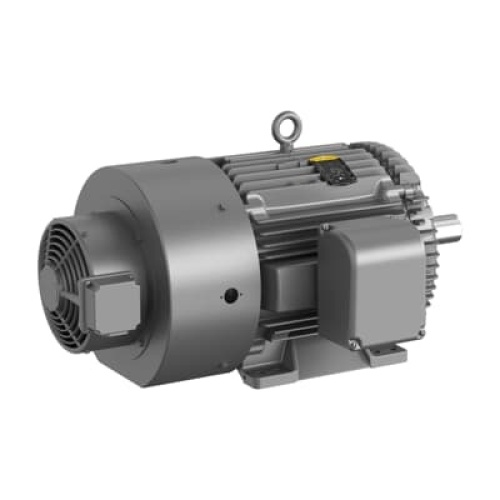

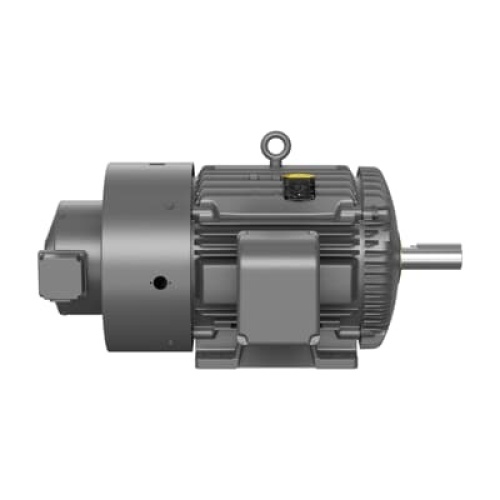

Baldor ZDM4115T Vector Motor, TEBC, 326T Frame, 4-Pole
$9,109$10,930 (-17%)
Baldor ZDM4115T 3 230.0 V @ 60 HZ 460.0 V @ 60 HZ 50 HP @ 60 HZ 1775 RPM,1800 RPM @ 60 HZ 116 A @ 230.0 V 58 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Blower Cooled
Baldor ZDM4115T 3 230.0 V @ 60 HZ 460.0 V @ 60 HZ 50 HP @ 60 HZ 1775 RPM,1800 RPM @ 60 HZ 116 A @ 230.0 V 58 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Blower Cooled
Specifications
| Motor Voltage Phases | 3 Phase |
|---|---|
| Motor Frame Model | 326T |
| Motor Horsepower | 50 HP |
| Motor Frequency | 60 Hz |
| Motor Voltage | 230 Volt |
| Motor Voltage | 460 Volt |
| Motor RPM's | 1800 RPM |
| Motor Amperage (Full Load) | 116 Amp |
| Motor Amperage (Full Load) | 58 Amp |
| Motor NEMA Design | NEMA Design H |
| Motor Insulation Class | Class H Insulation |
| Motor Enclosure Type | Totally Enclosed Blower Cooled |
| Manufacturer | Baldor-Reliance |
| Motor Construction | Iron |
Features
1/3 – 500 Hp (0.25 – 373 kW)
Severe duty vector: 1 – 50 Hp (0.75 – 37.3 kW)
Standard NEMA frame 56 to 449T (IEC available)
Small ratings offered in TENV enclosures
Larger ratings offered in TEFC and TEBC enclosures
900, 1200 and 1800 RPM standard base speeds
Provisions for encode mounting
200% overload torque for 1 min at base speeds
Constant horsepower operation to 1.5x base speed
Class F or H insulation for extended motor life
Exceeds NEMA MG1 Part 31 requirements
Division 2 CSA certified
Corona-free insulation
3 thermostats, one per phase
