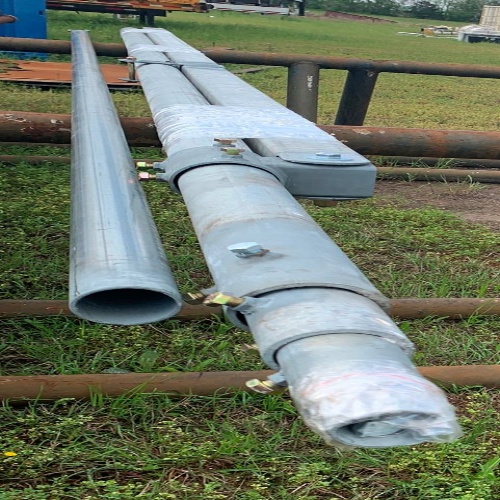

Beacon Pole LM-3 Self Supporting 50′ Tilt-Over Tower Monopole Mast System
$3,573$4,288 (-17%)
Beacon Pole LM-3 – Unobtrusive Design, No tower climbing required installing, erecting, or servicing. About 6 man-hours to install and set-up. Requires no support from buildings and no guy wires. Azimuth is adjustable from the ground. A lockable, hinged patented design allows servicing radio/antenna from the ground.…
Beacon Pole LM-3 – Unobtrusive Design, No tower climbing required installing, erecting, or servicing. About 6 man-hours to install and set-up. Requires no support from buildings and no guy wires. Azimuth is adjustable from the ground. A lockable, hinged patented design allows servicing radio/antenna from the ground. Cables are routed internally for protection and neat appearance. No excavation/pouring heavy concrete base. Requires a 6 foot deep post hole with 5-6 sacks of premix. Mast sections are galvanized for long life. The LM-3 Mast is intended to support a single Fixed Wireless Internet radio/antenna 18" Dish at 50 feet above the ground. We can supply special heavier masts for larger radio/antenna or when multiple units are required for AP and Backhaul, as in micro-pop applications. Please contact us with your special requirements. – Made In The USA. Kits – Tower Kits Include All Sections and Connection Hardware – Up To (5) Sections – (2) Cheek Plates & Bolts – (1) Toggle & Bolts – (1) Strain Relief – (2) Grub Bolts
Specifications
| Component | Self-Supporting Pole |
|---|---|
| Drilled Hole Diameter | 12" |
| Base Section Burial | 72" |
| Grout Depth | -2" |
| Max Mast Height | 50 Ft |
| Max Antenna Load | 18" Dish |
| Manufacturer | Beacon Pole |
Features
No Climbing Risk, No Guy Wires, No Supports
Fully Install, Erect, Service & Adjust From The Ground
Aesthetically Pleasing With Cables Routed Internally for Protection and Appearance
Hot-Dip High Strength Galvanized Laboratory Certified Steel For Long Life
Typical Uses Include Small CPE Dishes, MicroPop Applications, Broadband, Oil Well Monitoring, Lighting, Security and Two-Way Communication
Patented.
Made In The USA.
Veteran Owned Small Business
A lockable, tilt-over, hinged design allows servicing radio antenna from the ground.
Height Options range from 30 Feet up to 85 Feet depending on radio antenna size and wind loading.
Requires a 12 inch OD post hole either 6 or 7 foot deep using 6 to 10 sacks of premix concrete.
About 6 man-hours to install and set-up—not including cure time.
Most cost effective installation and eliminates the need for a crane, excavation, or a sizable heavy base like most other comparable towers.
Unobtrusive design is perfect for subdivisions, parks of all kinds, city or rural areas, residential or commercial properties. (Check Local Regulations)
One Year Limited Warranty On Parts If Installed According to our Installation Instructions.
