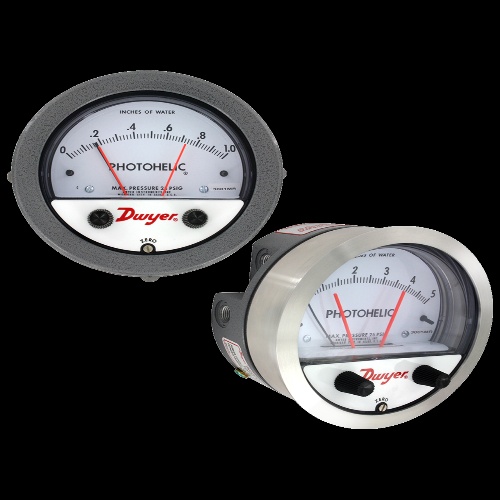

Dwyer 3003MRS-WP Photohelic® Switch/Gauge
$1,232$1,479 (-17%)
Dwyer 3003MRS-WP Photohelic® Switch/Gauge is a reliable and accurate device designed for monitoring air and compatible gases. With a temperature range of 20 to 120°F (-6.67 to 48.9°C) and an accuracy of ±2% of FS, this product is ideal for various applications. It operates on 24 VDC power supply and offers an optional…
Dwyer 3003MRS-WP Photohelic® Switch/Gauge is a reliable and accurate device designed for monitoring air and compatible gases. With a temperature range of 20 to 120°F (-6.67 to 48.9°C) and an accuracy of ±2% of FS, this product is ideal for various applications. It operates on 24 VDC power supply and offers an optional 24VAC. The electrical connections come with an 18" cable assembly, and the product can be mounted with the diaphragm in a vertical position. With a pressure limit of -20" Hg to 25 psig, the Dwyer 3003MRS-WP is a versatile and practical solution for measuring pressure. It features a 4" dial face with adjustable knobs for easy set point adjustment. Overall, this product is a cost-effective and reliable solution for pressure measurement.
Specifications
| (Instrument-Sensor) Supply Voltage | 24 VDC |
|---|---|
| (Instrument-Sensor) Supply Voltage | 24 VAC |
| (Instrument-Sensor) Application | Air And Non-Combustible Compatible Gases |
| Component | Pressure Gauge |
| (Instrument-Sensor) Temperature Range | 20 – 120°F/-6.67 – 48.9°C |
| (Instrument-Sensor) Measurement Accuracy | 2.0% |
| (Instrument-Sensor) Measurement Accuracy | 3.0% |
| (Instrument-Sensor) Measurement Accuracy | 4.0% |
| Manufacturer | Dwyer Instruments |
| (Instrument-Sensor) Type | Photohelic |
Features
Gage reading unaffected by switch operation and will continue to read pressure even during power loss
Zero and range adjustments outside of gage means no disassembly in normal service
Solid-state design allows for switching in high cycle rate applications without degradation
Optional stainless steel bezel is the same installation diameter as Magnehelic® gage and simplifies field upgrade to Photohelic® switch/gage
