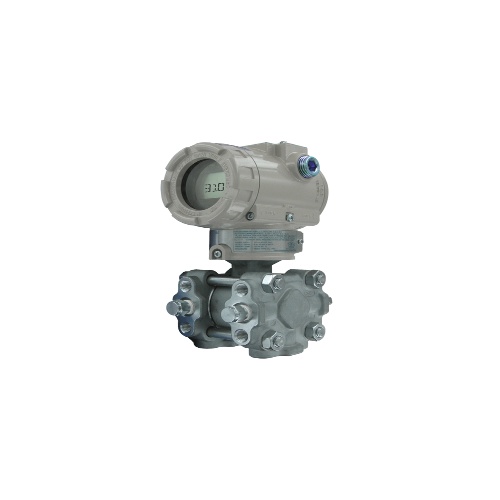

Dwyer 3100MP-3-FM-1-1 Explosion-Proof Multiplanar Differential Pressure Transmitter
$2,122$2,546 (-17%)
Dwyer 3100MP-3-FM-1-1 is an explosion-proof multiplanar differential pressure transmitter. It operates in temperatures ranging from -40 to 248°F (-40 to 120°C) and has an accuracy of ±0.075% FS. It requires a power supply of 11.9 to 45 VDC and has a response time of 0.12 s. It is suitable for use with compatible…
Dwyer 3100MP-3-FM-1-1 is an explosion-proof multiplanar differential pressure transmitter. It operates in temperatures ranging from -40 to 248°F (-40 to 120°C) and has an accuracy of ±0.075% FS. It requires a power supply of 11.9 to 45 VDC and has a response time of 0.12 s. It is suitable for use with compatible gases, steam, liquids, or vapors. The transmitter features a 4 to 20 mA /HART® Communication output signal and has a NEMA 4X (IP66) enclosure rating. It comes with two 1/2" female NPT conduit electrical connections and has an optional 5 digit LCD display. The wetted material is made of 316L SS and the pressure limit ranges from -14.5 to 2000 psi. It is suitable for use in hazardous locations and has a thermal effect of ±0.125% span/32°C. The loop resistance ranges from 0 to 1500 Ω for operation and 250 to 500 Ω for HART® Communication. It has a stability of ±0.125% FSO/yr, a damping time of 0.25 to 60 s, and a rangeability of 100:1 turn down.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) NEMA Protection | NEMA 4X |
| (Instrument-Sensor) IP Protection | IP66 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Application | Steam |
| (Instrument-Sensor) Measurement Accuracy | 0.08% |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Temperature Range | Process: -40 – 248°F/-40 – 120°C |
| (Instrument-Sensor) Supply Voltage | 11.9-45 VDC |
| (Instrument-Sensor) Type | Explosion-Proof Multiplanar Differential |
| (Instrument-Sensor) Temperature Range | Ambient: Without LCD: -40 – 185°F/-40 – 85°C |
| (Instrument-Sensor) Temperature Range | With LCD: -22 – 176°F/-30 – 80°C |
| Manufacturer | Dwyer Instruments |
| (Instrument-Sensor) Hazardous Location Class | Class I – Div. I Groups A-D |
Features
Configurable using zero/span buttons means no calibrator required reducing time to install and running
Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
High accuracy (±0.075%) provides exceptional measurement for ensuring tightcontrol and minimizing costly out of specification conditions
Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital
