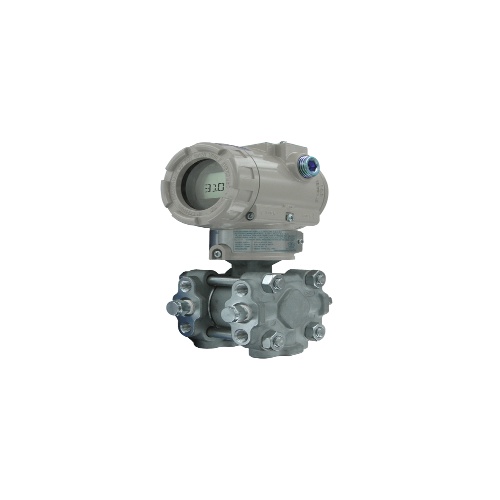

Dwyer 3100MP-7-FM-1-1-LCD Explosion-Proof Multiplanar Differential Pressure Transmitter
$2,223$2,667 (-17%)
Dwyer 3100MP-7-FM-1-1-LCD is an explosion-proof differential pressure transmitter suitable for hazardous environments. It has a wide temperature range, accurate measurements (+/-0.075% FS), and a fast response time (0.12 s). With a NEMA 4X enclosure and 316L SS wetted material, it can handle a variety of gases, steam,…
Dwyer 3100MP-7-FM-1-1-LCD is an explosion-proof differential pressure transmitter suitable for hazardous environments. It has a wide temperature range, accurate measurements (+/-0.075% FS), and a fast response time (0.12 s). With a NEMA 4X enclosure and 316L SS wetted material, it can handle a variety of gases, steam, liquids, and vapors. The transmitter offers a 4-20 mA /HART® output signal and can be equipped with an optional LCD display.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) NEMA Protection | NEMA 4X |
| (Instrument-Sensor) IP Protection | IP66 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Application | Steam |
| (Instrument-Sensor) Measurement Accuracy | 0.08% |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Temperature Range | Process: -40 – 248°F/-40 – 120°C |
| (Instrument-Sensor) Supply Voltage | 11.9-45 VDC |
| (Instrument-Sensor) Type | Explosion-Proof Multiplanar Differential |
| (Instrument-Sensor) Temperature Range | Ambient: Without LCD: -40 – 185°F/-40 – 85°C |
| (Instrument-Sensor) Temperature Range | With LCD: -22 – 176°F/-30 – 80°C |
| Manufacturer | Dwyer Instruments |
| (Instrument-Sensor) Hazardous Location Class | Class I – Div. I Groups A-D |
Features
Configurable using zero/span buttons means no calibrator required reducing time to install and running
Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
High accuracy (±0.075%) provides exceptional measurement for ensuring tightcontrol and minimizing costly out of specification conditions
Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital
