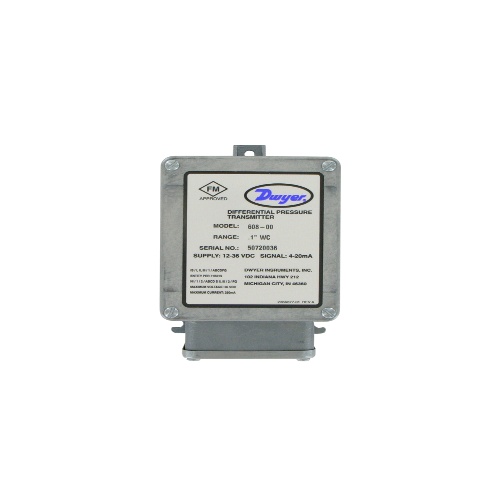

Dwyer 608-10 Intrinsically Safe Differential Pressure Transmitter
$1,751$2,101 (-17%)
Dwyer 608-10 is an intrinsically safe differential pressure transmitter with a temperature range of -20°F to 185°F (-28°C to 85°C). It offers an accuracy of ±0.5% or ±0.25% full scale and operates on a power requirement of 12 to 30 VDC. With a fast response time of 250 ms and an enclosure rating of NEMA 4X (IP65), it…
Dwyer 608-10 is an intrinsically safe differential pressure transmitter with a temperature range of -20°F to 185°F (-28°C to 85°C). It offers an accuracy of ±0.5% or ±0.25% full scale and operates on a power requirement of 12 to 30 VDC. With a fast response time of 250 ms and an enclosure rating of NEMA 4X (IP65), it is suitable for clean/dry air and compatible combustible gases. The transmitter features a 4 to 20 mA DC output signal and has potentiometers for zero and span adjustments. It is not position sensitive and has a pressure limit of 100 psig (6.89 bar) and 15 psid (1.03 bar). The Dwyer 608-10 is designed for hazardous locations and has a thermal effect of 0.5% Accuracy: ±0.02% F.S./°F; 0.25% Accuracy: ±0.01% F.S./°F. It has a loop resistance of DC: 0 to 1045 Ω maximum and offers stability of ±0.5% F.S./yr.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) NEMA Protection | NEMA 4X |
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Supply Voltage | 12-30 VDC |
| (Instrument-Sensor) Type | Intrinsically Safe Differential |
| (Instrument-Sensor) Application | Air |
| (Instrument-Sensor) Temperature Range | -20 – 185°F/-28 – 85°C |
| (Instrument-Sensor) Measurement Accuracy | 0.50% |
| Manufacturer | Dwyer Instruments |
Features
High accuracy at low pressure ranges provides exceptional measurement for ensuring tight-control and minimizing costly out of specification conditions
Intrinsically safe for use in the specified hazardous locations meets specifications where pressure transmission and safety cannot be compromised
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
