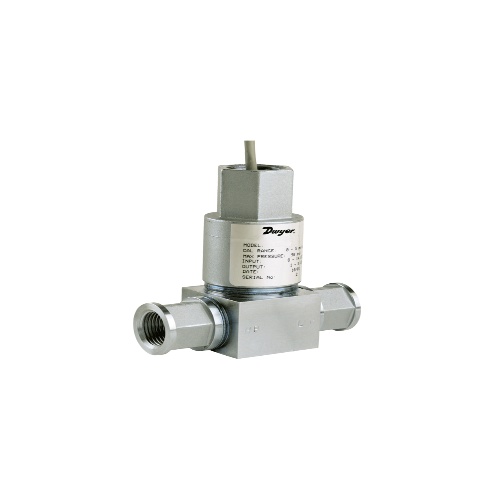

Dwyer 636D-2-LP Fixed Range Differential Pressure Transmitter
$1,810$2,172 (-17%)
Dwyer 636D-2-LP is a fixed range differential pressure transmitter with a temperature range of -40 to 140°F. It has an accuracy of ±0.5% F.S. and a response time of 20 ms. The transmitter has an NEMA 4 enclosure rating and can be powered by 12-30 VDC. It provides a 4-20 mA or 1-5 VDC output signal and has zero and…
Dwyer 636D-2-LP is a fixed range differential pressure transmitter with a temperature range of -40 to 140°F. It has an accuracy of ±0.5% F.S. and a response time of 20 ms. The transmitter has an NEMA 4 enclosure rating and can be powered by 12-30 VDC. It provides a 4-20 mA or 1-5 VDC output signal and has zero and span adjustments. The transmitter is suitable for use with compatible gases, liquids, or vapors and has a pressure limit of 3x full-scale differential pressure. It has two 1/2" female NPT process connections and is made of Type 316L SS wetted material. The transmitter is suitable for hazardous locations and has a thermal effect of ±2% F.S./50°F. It has a stability of ±1.0% F.S./yr and a current consumption of 4-20 mA for current output models.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) NEMA Protection | NEMA 4 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Supply Voltage | 12-30 VDC |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Measurement Accuracy | 0.50% |
| (Instrument-Sensor) Temperature Range | Ambient: -40 – 140°F/-40 – 60°C |
| (Instrument-Sensor) Temperature Range | Process: -40 – 212°F/-40 – 100°C |
| (Instrument-Sensor) Supply Voltage | 8-14 VDC |
| (Instrument-Sensor) Type | Fixed Range Differential |
| (Instrument-Sensor) Temperature Range | Storage: -40 – 212°F/-40 – 100°C |
| Manufacturer | Dwyer Instruments |
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
