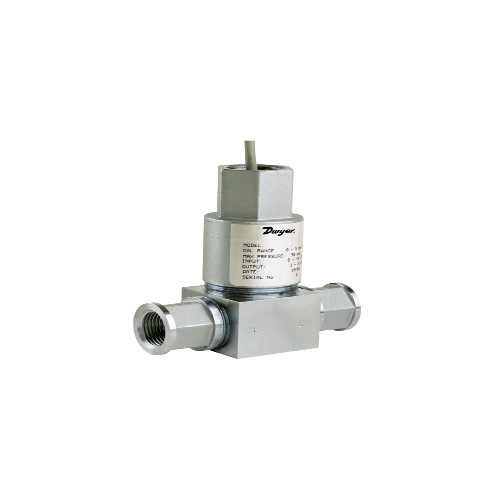

Dwyer 636D-3-LP Fixed Range Differential Pressure Transmitter
$1,810$2,172 (-17%)
Dwyer 636D-3-LP is a fixed range differential pressure transmitter with a temperature range of -40 to 140°F. It has an accuracy of ±0.5% F.S. and requires 12-30 VDC for 4-20 mA outputs. The response time is 20 ms and it has a NEMA 4 enclosure rating. The transmitter can be used with compatible gases, liquids, or…
Dwyer 636D-3-LP is a fixed range differential pressure transmitter with a temperature range of -40 to 140°F. It has an accuracy of ±0.5% F.S. and requires 12-30 VDC for 4-20 mA outputs. The response time is 20 ms and it has a NEMA 4 enclosure rating. The transmitter can be used with compatible gases, liquids, or vapors. The wetted material is types 316L SS and it has a pressure limit of 3 x full scale differential pressure. The transmitter is suitable for hazardous locations and has a thermal effect of ±2% F.S./50°F. Loop resistance is 900 ohms max. at 30 VDC. The stability is ±1.0% F.S./yr and the current consumption is 4-20 mA for current output models.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) NEMA Protection | NEMA 4 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Supply Voltage | 12-30 VDC |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Measurement Accuracy | 0.50% |
| (Instrument-Sensor) Temperature Range | Ambient: -40 – 140°F/-40 – 60°C |
| (Instrument-Sensor) Temperature Range | Process: -40 – 212°F/-40 – 100°C |
| (Instrument-Sensor) Supply Voltage | 8-14 VDC |
| (Instrument-Sensor) Type | Fixed Range Differential |
| (Instrument-Sensor) Temperature Range | Storage: -40 – 212°F/-40 – 100°C |
| Manufacturer | Dwyer Instruments |
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
