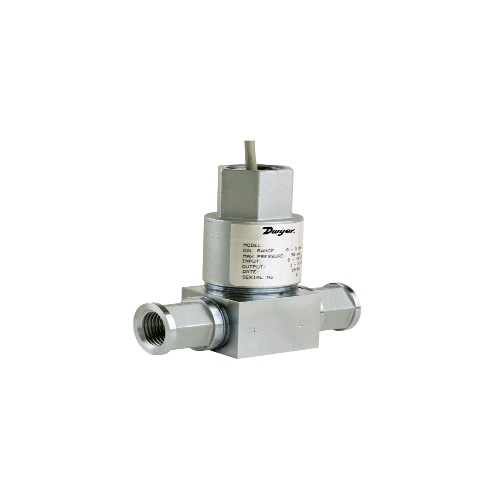

Dwyer 636D-5 Fixed Range Differential Pressure Transmitter

Dwyer 636D-5 is a Fixed Range Differential Pressure Transmitter with a temperature range of -40 to 140°F for ambient operating, -40 to 212°F for process interface, and -40 to 212°F for storage. With an accuracy of ±0.5% F.S., it requires a power of 12-30 VDC for 4-20 mA outputs or 8-14 VDC for 1-5 VDC outputs. It has a response time of 20 ms and an enclosure rating of NEMA 4. It features a 2 ft, 22 AWG cable for electrical connections and offers a output signal of 4 to 20 mA DC or 1-5 VDC. It is designed for use with compatible gases, liquids, or vapors and can be mounted in various orientations. Constructed with Types 316L SS, it has a pressure limit of 3 x full scale differential pressure and a burst pressure of 2500 psig. It is suitable for hazardous locations and exhibits a thermal effect of ±2% F.S./50°F. The loop resistance is 900 ohms max at 30 VDC for current outputs and minimum lead resistance of 50k ohms for voltage outputs. It offers stability of ±1.0% F.S./yr and consumes 4-20 mA or 3 mA of current depending on the model.
