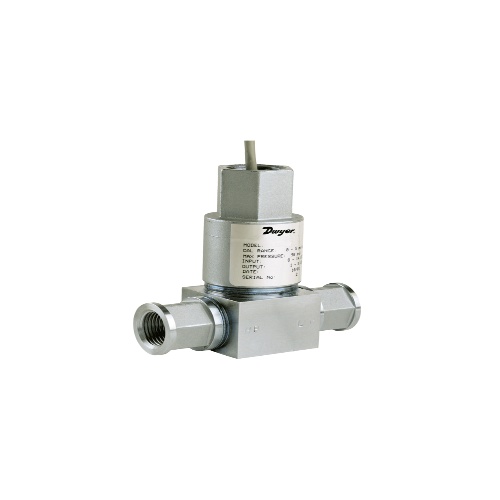

Dwyer 636D-6 Fixed Range Differential Pressure Transmitter
$1,697$2,037 (-17%)
Dwyer 636D-6 is a fixed range differential pressure transmitter with an accuracy of ±0.5% F.S. It operates within a temperature range of -40 to 140°F and has an enclosure rating of NEMA 4. The transmitter has a response time of 20 ms and can be powered by a 12-30 VDC or 8-14 VDC source. It has a 4-20 mA or 1-5 VDC…
Dwyer 636D-6 is a fixed range differential pressure transmitter with an accuracy of ±0.5% F.S. It operates within a temperature range of -40 to 140°F and has an enclosure rating of NEMA 4. The transmitter has a response time of 20 ms and can be powered by a 12-30 VDC or 8-14 VDC source. It has a 4-20 mA or 1-5 VDC output signal and features fixed zero and span adjustments. The wetted material is types 316L SS and it has a pressure limit of 3x full scale differential pressure. The transmitter is suitable for use with compatible gases, liquids, or vapors and can be mounted in various orientations with a ±0.05 psi/90° rotation from horizontal. It is designed for use in hazardous locations and has a thermal effect of ±2% F.S./50°F. The loop resistance is 900 ohms max. and it has a stability of ±1.0% F.S./yr. The current consumption is 4-20 mA for current output models and 3 mA for voltage output models.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) NEMA Protection | NEMA 4 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Supply Voltage | 12-30 VDC |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Measurement Accuracy | 0.50% |
| (Instrument-Sensor) Temperature Range | Ambient: -40 – 140°F/-40 – 60°C |
| (Instrument-Sensor) Temperature Range | Process: -40 – 212°F/-40 – 100°C |
| (Instrument-Sensor) Supply Voltage | 8-14 VDC |
| (Instrument-Sensor) Type | Fixed Range Differential |
| (Instrument-Sensor) Temperature Range | Storage: -40 – 212°F/-40 – 100°C |
| Manufacturer | Dwyer Instruments |
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
