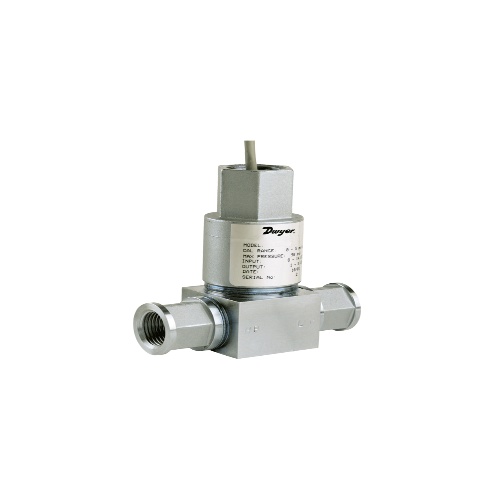

Dwyer 636D-7 Fixed Range Differential Pressure Transmitter
$1,697$2,037 (-17%)
Dwyer 636D-7 is a fixed range differential pressure transmitter with an accuracy of ±0.5% F.S. It operates in temperatures ranging from -40 to 140°F and has a response time of 20 ms. The transmitter requires 12-30 VDC power and has a NEMA 4 enclosure rating. It is compatible with gases, liquids, and vapors and has a…
Dwyer 636D-7 is a fixed range differential pressure transmitter with an accuracy of ±0.5% F.S. It operates in temperatures ranging from -40 to 140°F and has a response time of 20 ms. The transmitter requires 12-30 VDC power and has a NEMA 4 enclosure rating. It is compatible with gases, liquids, and vapors and has a pressure limit of 3 x full scale differential pressure. The transmitter features a 4 to 20 mA DC or 1-5 VDC output signal, fixed zero and span adjustments, and a thermal effect of ±2% F.S./50°F.
Specifications
| Component | Differential Pressure Transmitter |
|---|---|
| (Instrument-Sensor) IP Protection | IP65 |
| (Instrument-Sensor) NEMA Protection | NEMA 4 |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Supply Voltage | 12-30 VDC |
| (Instrument-Sensor) Application | Vapor |
| (Instrument-Sensor) Measurement Accuracy | 0.50% |
| (Instrument-Sensor) Temperature Range | Ambient: -40 – 140°F/-40 – 60°C |
| (Instrument-Sensor) Temperature Range | Process: -40 – 212°F/-40 – 100°C |
| (Instrument-Sensor) Supply Voltage | 8-14 VDC |
| (Instrument-Sensor) Type | Fixed Range Differential |
| (Instrument-Sensor) Temperature Range | Storage: -40 – 212°F/-40 – 100°C |
| Manufacturer | Dwyer Instruments |
Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application
