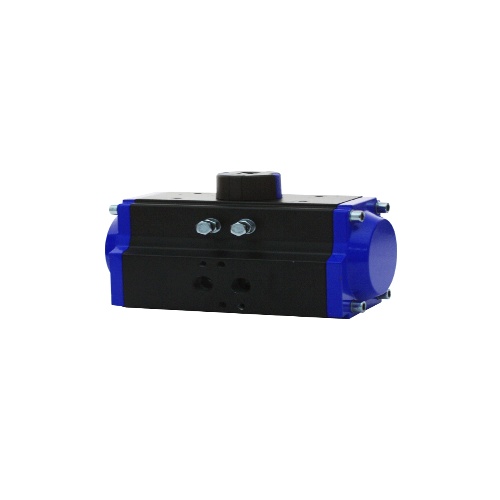

Dwyer ACT-MI10-220VAC Pneumatic/Electric Actuator
$11,306
Dwyer ACT-MI10-220VAC is a pneumatic and electric actuator designed for hazardous locations, with a temperature range of -40 to 140°F (-40 to 60°C). It has multiple power requirements (110 VAC, 220 VAC, 24 VAC, or 24 VDC) and an enclosure rating of NEMA 7. It is made of powder coated aluminum and has various…
Dwyer ACT-MI10-220VAC is a pneumatic and electric actuator designed for hazardous locations, with a temperature range of -40 to 140°F (-40 to 60°C). It has multiple power requirements (110 VAC, 220 VAC, 24 VAC, or 24 VDC) and an enclosure rating of NEMA 7. It is made of powder coated aluminum and has various connection options. It features a position indicator, two limit switches, and meets industry-standard specifications.
Specifications
| (Instrument-Sensor) Supply Voltage | 24 VDC |
|---|---|
| (Instrument-Sensor) NEMA Protection | NEMA 7 |
| (Instrument-Sensor) Supply Voltage | 24 VAC |
| (Instrument-Sensor) Supply Voltage | 110 VAC |
| Component | Actuator |
| (Instrument-Sensor) Hazardous Location Class | Class I – Group C & D; Class II – Group E-G; Division I & II |
| (Instrument-Sensor) Temperature Range | -40 – 140°F/-40 – 60°C |
| Sub Component | Pneumatic/Electric Actuator |
| (Instrument-Sensor) Supply Voltage | 220 VAC |
| Manufacturer | Dwyer Instruments |
Features
ISO 5211 Mounting configuration for easy installation
Pneumatic actuators offer corrosion resistance anodized finish
NAMUR mounting configuration on pneumatic actuators
Two-position electric actuators include auxiliary limit switches
Modulating electric actuators offer an output for position monitoring
