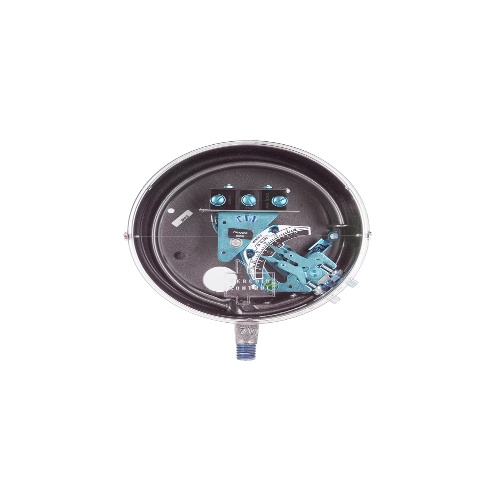

Dwyer DAH-7041-153-13E Bourdon Tube Pressure Switch
$2,446$2,935 (-17%)
Dwyer DAH-7041-153-13E Bourdon Tube Pressure Switch is a versatile and efficient component with a maximum operating temperature of 180°F. Its general purpose, weatherproof, or explosion-proof enclosure rating ensures suitability for various environments. The switch offers reliable performance with options for SPST…
Dwyer DAH-7041-153-13E Bourdon Tube Pressure Switch is a versatile and efficient component with a maximum operating temperature of 180°F. Its general purpose, weatherproof, or explosion-proof enclosure rating ensures suitability for various environments. The switch offers reliable performance with options for SPST mercury, SPDT mercury, or SPDT snap switch types. Deadband and repeatability fall within acceptable ranges.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Type | Bourdon Tube |
| (Instrument-Sensor) Temperature Range | 180°F/82°C |
| Manufacturer | Dwyer Instruments |
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
