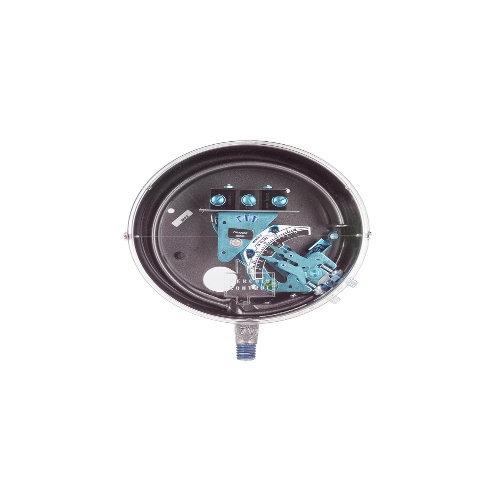

Dwyer DAH-7041-153-23E Bourdon Tube Pressure Switch
$2,072$2,486 (-17%)
Dwyer DAH-7041-153-23E Bourdon Tube Pressure Switch is a versatile and reliable component with a temperature rating of 180°F (82°C). It is suitable for general purpose, weatherproof, or explosion-proof enclosures. With various wetted material options and pressure limits, it offers flexibility for different…
Dwyer DAH-7041-153-23E Bourdon Tube Pressure Switch is a versatile and reliable component with a temperature rating of 180°F (82°C). It is suitable for general purpose, weatherproof, or explosion-proof enclosures. With various wetted material options and pressure limits, it offers flexibility for different applications. The switch type can be SPST or SPDT mercury or snap switch, and the set point adjustment is easily done with a thumbscrew. It is designed for vertical mounting orientation and has different conduit connection options. Repeatability ranges from ±1% to ±1.5% depending on the model.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Type | Bourdon Tube |
| (Instrument-Sensor) Temperature Range | 180°F/82°C |
| Manufacturer | Dwyer Instruments |
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
