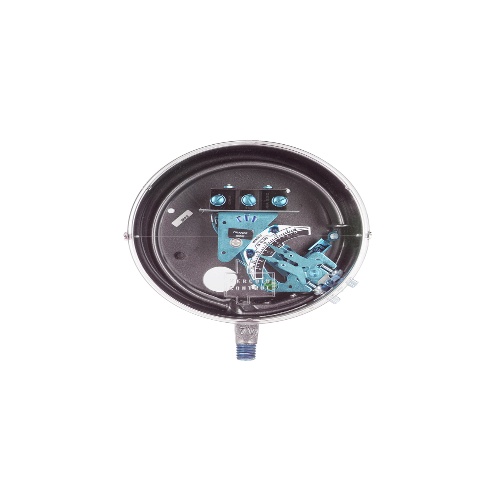

Dwyer DAH-7041-153-24E Bourdon Tube Pressure Switch
$2,072$2,486 (-17%)
Dwyer DAH-7041-153-24E is a Bourdon Tube Pressure Switch with an operating temperature of 180°F (82°C). It has a general purpose, weatherproof, or explosion-proof enclosure rating and screw terminal electrical connections. This switch can be mounted vertically and has wetted materials of brass, 403 SS, or 316 SS. It…
Dwyer DAH-7041-153-24E is a Bourdon Tube Pressure Switch with an operating temperature of 180°F (82°C). It has a general purpose, weatherproof, or explosion-proof enclosure rating and screw terminal electrical connections. This switch can be mounted vertically and has wetted materials of brass, 403 SS, or 316 SS. It has a maximum pressure limit and various process connections. With a repeatability of ±1% of full operating range, ±1.5% on DS-7300 models, it offers SPST mercury switch, SPDT mercury switch, or SPDT snap switch options. Set point adjustment is done through a thumbscrew and it has conduit connections of different sizes depending on the enclosure type. The deadband can be found on the catalog page.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Type | Bourdon Tube |
| (Instrument-Sensor) Temperature Range | 180°F/82°C |
| Manufacturer | Dwyer Instruments |
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
