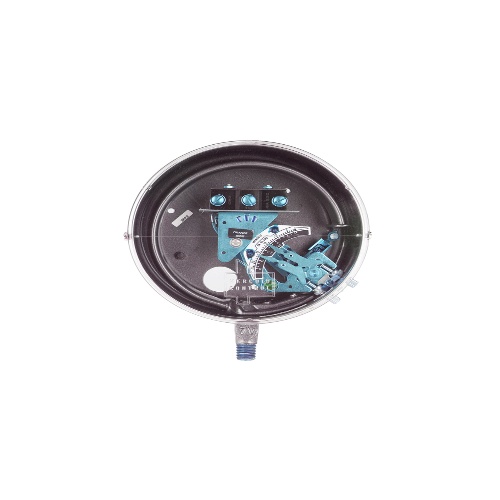

Dwyer DAW-7043-153-11E Bourdon Tube Pressure Switch
$1,559$1,870 (-17%)
Dwyer DAW-7043-153-11E is a Bourdon Tube Pressure Switch with a temperature range of 180°F (82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating, and electrical connections are made via screw terminals. It can be mounted vertically and is available in wetted materials such as Brass, 403…
Dwyer DAW-7043-153-11E is a Bourdon Tube Pressure Switch with a temperature range of 180°F (82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating, and electrical connections are made via screw terminals. It can be mounted vertically and is available in wetted materials such as Brass, 403 SS, or 316 SS. The switch has a maximum pressure limit and a variety of process connection options. It has a repeatability of ±1% of the full operating range and a set point adjustment using a thumbscrew. The conduit connection size varies based on the enclosure rating. The switch type can be SPST mercury switch, SPDT mercury switch, or SPDT snap switch. The deadband specification is available on the catalog page.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Type | Bourdon Tube |
| (Instrument-Sensor) Temperature Range | 180°F/82°C |
| Manufacturer | Dwyer Instruments |
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
