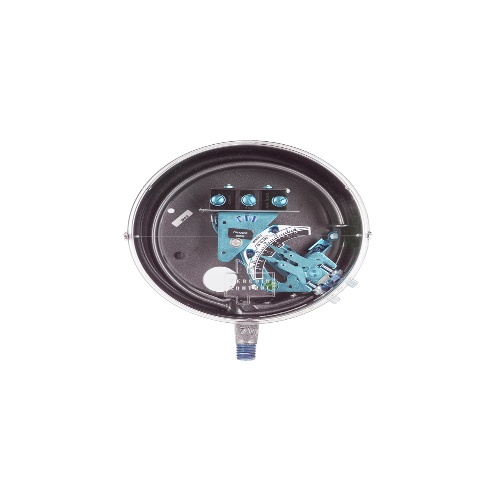

Dwyer DAW-7043-153-13E Bourdon Tube Pressure Switch
$1,559$1,870 (-17%)
Dwyer DAW-7043-153-13E is a Bourdon Tube Pressure Switch with a temperature range of up to 180°F (82°C). It is available in general purpose, weatherproof, and explosion-proof enclosures with screw terminal electrical connections. It can be mounted vertically and is made of brass, 403 SS, or 316 SS. It has a maximum…
Dwyer DAW-7043-153-13E is a Bourdon Tube Pressure Switch with a temperature range of up to 180°F (82°C). It is available in general purpose, weatherproof, and explosion-proof enclosures with screw terminal electrical connections. It can be mounted vertically and is made of brass, 403 SS, or 316 SS. It has a maximum pressure limit and various process connection options. The switch type can be SPST or SPDT with mercury or snap switch options. Set point adjustment is done with a thumbscrew and it has conduit connections for general purpose, weatherproof, and explosion-proof applications. Repeatability is ±1% of the full operating range and electrical rating can be found in the catalog.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Type | Bourdon Tube |
| (Instrument-Sensor) Temperature Range | 180°F/82°C |
| Manufacturer | Dwyer Instruments |
Features
Visible calibrated dial provides an easy and fast check without having to open device causing dangerous conditions to operators
On/off indication (except hermetically sealed snap switch models) gives operator clear indication of state of switched equipment that could be located in another location
Adjustable or fixed deadband supports control applications by reducing equipment wear-out by unnecessary recycling
External switch set point adjustment reduces set-up time
Pressure ranges of full vacuum to 8000 psig gives application designers the ability to specify standard equipment, simplifying install and training, and reducing servicing costs
UL listed, CSA approved, many models FM approved to support rigorous process applications and regulations
General purpose, weatherproof or explosion-proof enclosures for a variety of indoor or outdoor environments meeting the needs of multiple applications and uses
