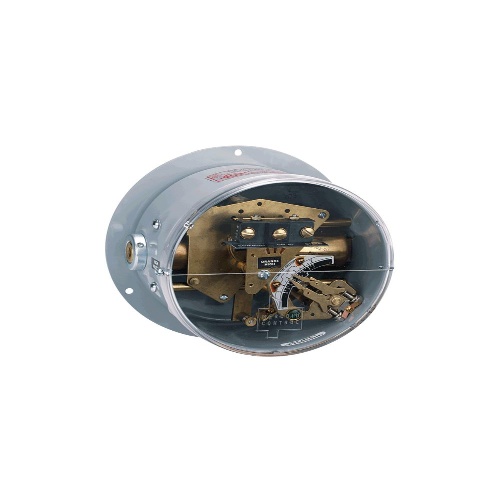

Dwyer DPA-7043-153-62E Double Bellows Differential Pressure Switch
$2,465$2,958 (-17%)
Dwyer DPA-7043-153-62E is a double bellows differential pressure switch with a temperature range of -10 to 180°F (-23 to 82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating and screw terminal electrical connections. The switch is available in mercury or snap switch types and has a…
Dwyer DPA-7043-153-62E is a double bellows differential pressure switch with a temperature range of -10 to 180°F (-23 to 82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating and screw terminal electrical connections. The switch is available in mercury or snap switch types and has a thumbscrew set point adjustment. The process connection is 1/8" NPT female for general purpose and weatherproof, and 1/4" NPT male for explosion-proof. Wetted material options include brass or 316SS. The switch has a maximum pressure limit and can be mounted vertically. The electrical rating and conduit connection details can be found on the ordering page.
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Temperature Range | -10 – 180°F/-23 – 82°C |
| (Instrument-Sensor) Type | Double Bellows |
| Manufacturer | Dwyer Instruments |
Features
Bellows switch design provides sensitivity to pressure changes but resists vibration preventing out of range switching
External access to set and rest controls makes for easy adjustments
Visible set point indicators simplify changes
