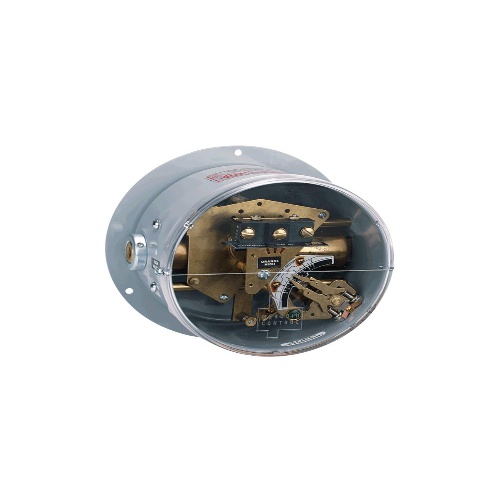

Dwyer DPS-233-3-62 Double Bellows Differential Pressure Switch
$1,540$1,848 (-17%)
Dwyer DPS-233-3-62 is a double bellows differential pressure switch with a temperature range of -10 to 180°F (-23 to 82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating and screw terminal electrical connections. The switch can be mounted vertically and has wetted materials of brass or…
Dwyer DPS-233-3-62 is a double bellows differential pressure switch with a temperature range of -10 to 180°F (-23 to 82°C). It has a general purpose, weatherproof or explosion-proof enclosure rating and screw terminal electrical connections. The switch can be mounted vertically and has wetted materials of brass or 316SS. It has a maximum pressure limit and process connections of 1/8" NPT female or 1/4" NPT male. The switch type is mercury or snap, and it has a thumbscrew set point adjustment. The conduit connection is 1/2" hole for conduit hub (general purpose), 1/2" conduit hub (weatherproof), or 3/4" NPT female (explosion-proof).
Specifications
| Component | Pressure Switch |
|---|---|
| (Instrument-Sensor) Temperature Range | -10 – 180°F/-23 – 82°C |
| (Instrument-Sensor) Type | Double Bellows |
| Manufacturer | Dwyer Instruments |
Features
Bellows switch design provides sensitivity to pressure changes but resists vibration preventing out of range switching
External access to set and rest controls makes for easy adjustments
Visible set point indicators simplify changes
