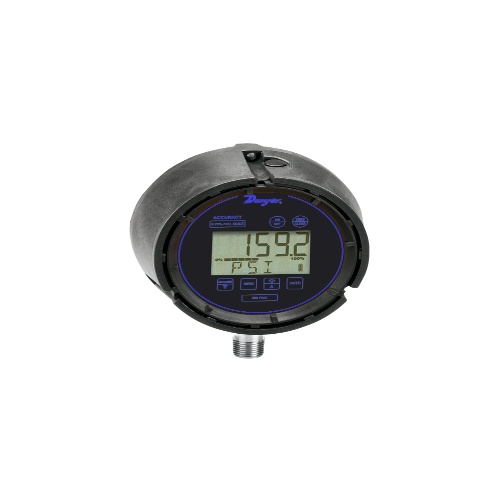

Dwyer DSGT-101-C1S Digital Indicating Transmitter
$1,814$2,177 (-17%)
Dwyer DSGT-101-C1S is a Digital Indicating Transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC). It offers high accuracy of 0.25% FS, powered by a 12 to 36 VDC source. The response time is 100 ms. The transmitter features a fiberglass reinforced thermoplastic case, 3 ft flying leads for electrical…
Dwyer DSGT-101-C1S is a Digital Indicating Transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC). It offers high accuracy of 0.25% FS, powered by a 12 to 36 VDC source. The response time is 100 ms. The transmitter features a fiberglass reinforced thermoplastic case, 3 ft flying leads for electrical connections, and a 4-20 mA output signal. It is suitable for use with compatible non-combustible liquids and gases. The 5-digit display is easy to read with a 0.88" height. The wetted material consists of a 17-4 stainless steel sensor and 316 SS socket. The pressure limit is 2 times the FS range, and the process connection is 1/2" male NPT. The set point is adjustable through menu selections. It has a low thermal effect of 0.04% FS/°F. The loop resistance ranges from 0 to 1090 Ω max. The transmitter is powered by (2) C alkaline batteries, which are installed and user-replaceable.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Supply Voltage | 12-36 VDC |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Temperature Range | 14 – 140°F/-10 – 60°C |
| Component | Digital Indicating Transmitter |
| Manufacturer | Dwyer Instruments |
Features
All-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors by untrained personnel
