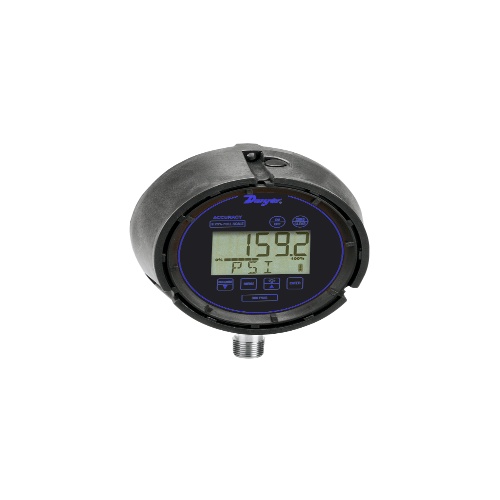

Dwyer DSGT-108-C1S Digital Indicating Transmitter
$1,814$2,177 (-17%)
Dwyer DSGT-108-C1S is a digital indicating transmitter that operates in a temperature range of 14 to 140ºF (-10 to 60ºC). It offers high accuracy of 0.25% FS, powered by 12 to 36 VDC. With a fast response time of 100 ms, the transmitter features a fiberglass-reinforced thermoplastic case for durability. It has a…
Dwyer DSGT-108-C1S is a digital indicating transmitter that operates in a temperature range of 14 to 140ºF (-10 to 60ºC). It offers high accuracy of 0.25% FS, powered by 12 to 36 VDC. With a fast response time of 100 ms, the transmitter features a fiberglass-reinforced thermoplastic case for durability. It has a 5-digit display and offers a 4 to 20 mA output signal. Suitable for compatible liquids and gases, it has a 1/2" male NPT process connection. The set point is adjustable through menu selections, and it has a pressure limit of 2 x FS range. The transmitter also features a thermal effect of 0.04% FS/°F and a loop resistance range of 0 to 1090 Ω. The device is powered by (2) C alkaline batteries, which are installed and user-replaceable.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Supply Voltage | 12-36 VDC |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Temperature Range | 14 – 140°F/-10 – 60°C |
| Component | Digital Indicating Transmitter |
| Manufacturer | Dwyer Instruments |
Features
All-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors by untrained personnel
