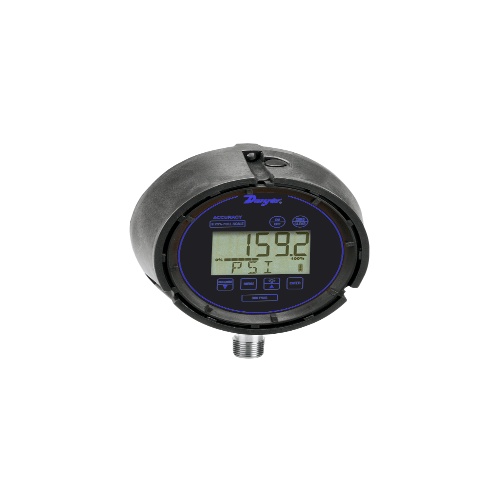

Dwyer DSGT-108-C2S Digital Indicating Transmitter
$2,939
Dwyer DSGT-108-C2S is a digital indicating transmitter with a temperature range of 14 to 140ºF and an accuracy of 0.25% FS. It operates on 12 to 36 VDC power and has a response time of 100 ms. The transmitter is housed in a fiberglass reinforced thermoplastic case and has electrical connections through 3 ft flying…
Dwyer DSGT-108-C2S is a digital indicating transmitter with a temperature range of 14 to 140ºF and an accuracy of 0.25% FS. It operates on 12 to 36 VDC power and has a response time of 100 ms. The transmitter is housed in a fiberglass reinforced thermoplastic case and has electrical connections through 3 ft flying leads. It has a 4 to 20 mA output signal and is compatible with non-combustible liquids and gases. The display is a 5-digit (0.88" high) and the wetted material is 17 to 4 stainless steel sensor with a 316 SS socket. The pressure limit is 2x the FS range and the process connection is 1/2" male NPT. The set point can be adjusted through menu selections. The thermal effect is 0.04% FS/°F and the loop resistance is 0 to 1090 Ω max. The transmitter has a memory of (2) C alkaline batteries, which are installed and user-replaceable.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Supply Voltage | 12-36 VDC |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Temperature Range | 14 – 140°F/-10 – 60°C |
| Component | Digital Indicating Transmitter |
| Manufacturer | Dwyer Instruments |
Features
All-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors by untrained personnel
