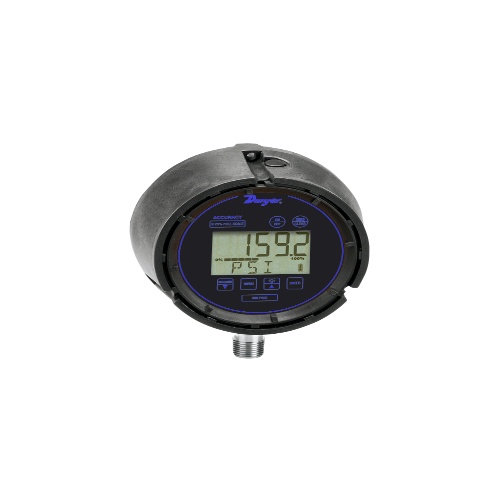

Dwyer DSGT-111-C2S Digital Indicating Transmitter
$2,939
Dwyer DSGT-111-C2S is a digital indicating transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC) and accuracy of 0.25% FS. It requires a power input of 12 to 36 VDC and has a fast response time of 100 ms. The housing is made of fiberglass reinforced thermoplastic and has 3 ft flying leads for electrical…
Dwyer DSGT-111-C2S is a digital indicating transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC) and accuracy of 0.25% FS. It requires a power input of 12 to 36 VDC and has a fast response time of 100 ms. The housing is made of fiberglass reinforced thermoplastic and has 3 ft flying leads for electrical connections. The output signal is 4 to 20 mA. It is compatible with non-combustible liquids and gases. It has a 5-digit display and the wetted materials are 17 to 4 stainless steel and 316 SS. The pressure limit is 2 times the full scale range and the process connection is 1/2" male NPT. Set point adjustment is adjustable through menu selections and the thermal effect is 0.04% FS/°F. The loop resistance is 0 to 1090 Ω max and it is powered by (2) C alkaline batteries, which are user replaceable.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Supply Voltage | 12-36 VDC |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Temperature Range | 14 – 140°F/-10 – 60°C |
| Component | Digital Indicating Transmitter |
| Manufacturer | Dwyer Instruments |
Features
All-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors by untrained personnel
