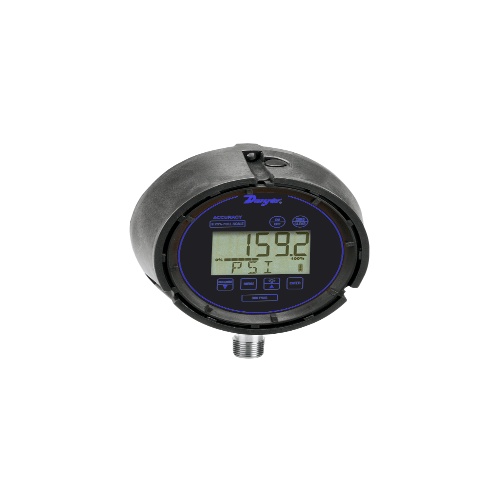

Dwyer DSGT-115-C2S Digital Indicating Transmitter
$2,939
Dwyer DSGT-115-C2S is a Digital Indicating Transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC). It offers an accuracy of 0.25% FS, power requirement of 12 to 36 VDC, and a response time of 100 ms. The transmitter features a fiberglass reinforced thermoplastic case enclosure and 3 ft flying leads for…
Dwyer DSGT-115-C2S is a Digital Indicating Transmitter with a temperature range of 14 to 140ºF (-10 to 60ºC). It offers an accuracy of 0.25% FS, power requirement of 12 to 36 VDC, and a response time of 100 ms. The transmitter features a fiberglass reinforced thermoplastic case enclosure and 3 ft flying leads for electrical connections. It has a 4 to 20 mA output signal and is suitable for use with compatible, non-combustible liquids and gases. The display is a 5-digit (0.88" high) format. The wetted material is 17 to 4 stainless steel sensor with a 316 SS socket, and the pressure limit is 2 x FS range. The process connection is 1/2" male NPT, and the set point adjustment is adjustable through menu selections. The thermal effect is 0.04% FS/°F, and the loop resistance is DC; 0 to 1090 Ω max. The transmitter is powered by (2) C alkaline batteries, which are installed and user-replaceable.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Supply Voltage | 12-36 VDC |
| (Instrument-Sensor) Application | Liquid |
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Temperature Range | 14 – 140°F/-10 – 60°C |
| Component | Digital Indicating Transmitter |
| Manufacturer | Dwyer Instruments |
Features
All-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches
Durable fiberglass reinforced thermoplastic case to meet NEMA 4 (IP56) requirements supports use in harsh environments
Password protected calibration and disable functions helps to insure no errors by untrained personnel
