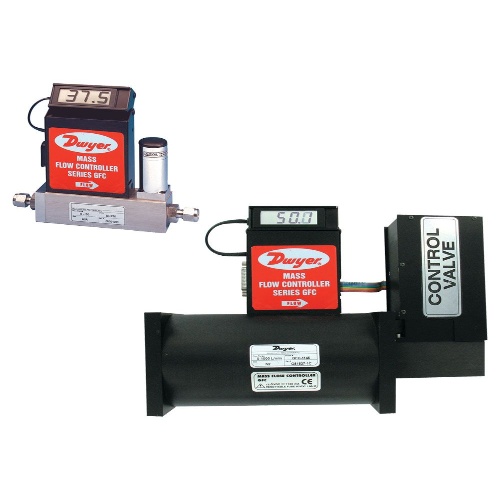

Dwyer GFC-1145 Gas Mass Flow Controller
$5,663$6,796 (-17%)
Dwyer GFC-1145 Gas Mass Flow Controller accurately measures and controls gas flow. It has a temperature range of 32 to 122°F (0 to 50°C) and offers an accuracy of ±1% FS. Its response time is 2 seconds and it operates on ±12 VDC voltage. The output is linear 0 to 5 VDC and 4 to 20 mA. It is compatible with clean…
Dwyer GFC-1145 Gas Mass Flow Controller accurately measures and controls gas flow. It has a temperature range of 32 to 122°F (0 to 50°C) and offers an accuracy of ±1% FS. Its response time is 2 seconds and it operates on ±12 VDC voltage. The output is linear 0 to 5 VDC and 4 to 20 mA. It is compatible with clean gases, has a 90° tiltable display, and features 316 SS and fluoroelastomer O-rings. The pressure limit is 1000 psig (68.9 bar) and it has a 1/4" compression fitting for flow rates ≤50 L/m. It has a particulate size of 5 microns and offers a repeatability of ±0.25% of FS. The leak integrity is 1 x 10-9 sccs of He.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| Component | Flow Controller |
| (Instrument-Sensor) Type | Gas Mass Flow Controller |
| Manufacturer | Dwyer Instruments |
Features
Provides high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Utilizes an electromagnetic valve and PID electronics to maintain continuous control by comparing measured sensor signal set to flow rates
Set points can be adjusted with local potentiometers or remotely via 0-5 VDC or 4-20 mA analog signal
Actual gas flow is displayed in engineering units on a 3-1/2 digit, 90° tiltable LCD readout
Can be used with Series GFT2 Flow Totalizer for applications requiring totalization
NIST traceable certificate included
