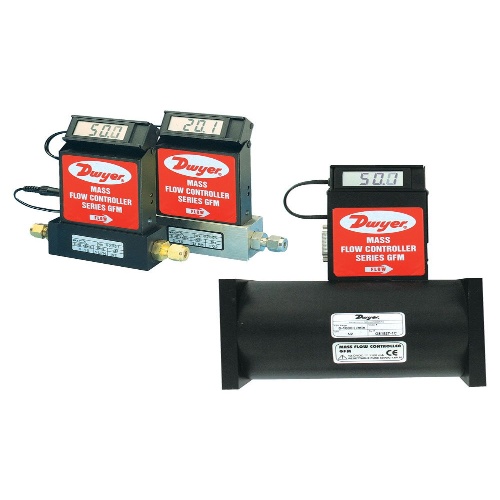

Dwyer GFM-1141 Gas Mass Flow Meter
$2,454$2,945 (-17%)
Dwyer GFM-1141 Gas Mass Flow Meter is a reliable and accurate device for measuring gas flow. It has a temperature range of 32 to 122°F and an accuracy of ±1% FS within certain temperature and pressure ranges. With a response time of 2 seconds, it provides quick and precise readings. The voltage options include ±12…
Dwyer GFM-1141 Gas Mass Flow Meter is a reliable and accurate device for measuring gas flow. It has a temperature range of 32 to 122°F and an accuracy of ±1% FS within certain temperature and pressure ranges. With a response time of 2 seconds, it provides quick and precise readings. The voltage options include ±12 VDC, and it offers a linear 0-5 VDC and 4-20 mA output. The display is tiltable and has a 3-1/2 digit design. The wetted materials vary depending on the model, with options including anodized aluminum, brass, and 316 SS. The pressure limit is 1000 psig, and the process connection sizes range from 1/4" to 3/4". It can effectively filter out particles as small as 5 microns. The repeatability is ±0.25% of FS, and it has excellent leak integrity.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
