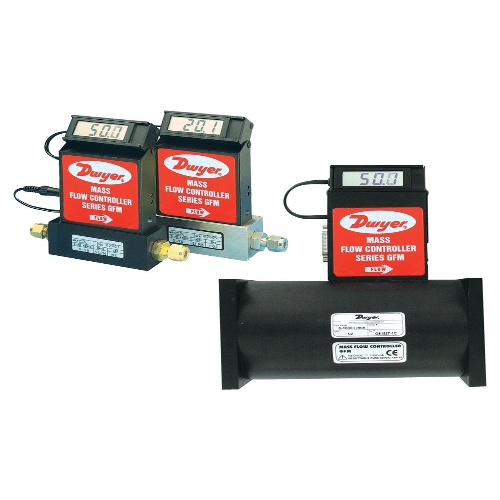

Dwyer GFM-1142 Gas Mass Flow Meter
$2,509$3,010 (-17%)
Dwyer GFM-1142 gas mass flow meter accurately measures clean gases within a temperature range of 32 to 122°F (0 to 50°C). With ±1% FS accuracy and a response time of 2 seconds, it provides reliable readings. The meter offers a voltage range of ±12 VDC, with linear outputs of 0-5 VDC and 4-20 mA. Its 3-1/2 digit…
Dwyer GFM-1142 gas mass flow meter accurately measures clean gases within a temperature range of 32 to 122°F (0 to 50°C). With ±1% FS accuracy and a response time of 2 seconds, it provides reliable readings. The meter offers a voltage range of ±12 VDC, with linear outputs of 0-5 VDC and 4-20 mA. Its 3-1/2 digit display is tiltable for easy reading. The wetted material is made of anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. The unit is compatible with flow rates ranging from ≤50 L/m to 1000 L/min. With a pressure limit of 1000 psig (68.9 bar) and a particle size tolerance of 5 microns, the meter ensures accurate and efficient performance.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
