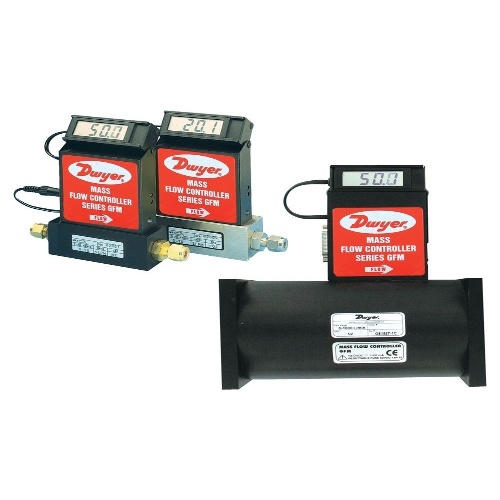

Dwyer GFM-1145 Gas Mass Flow Meter
$3,639$4,367 (-17%)
Dwyer GFM-1145 Gas Mass Flow Meter is a reliable and accurate instrument for measuring gas flow rates. With a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±1% FS, it is suitable for a wide range of applications. It offers a response time of 2 seconds and operates on ±12 VDC voltage. The meter…
Dwyer GFM-1145 Gas Mass Flow Meter is a reliable and accurate instrument for measuring gas flow rates. With a temperature range of 32 to 122°F (0 to 50°C) and an accuracy of ±1% FS, it is suitable for a wide range of applications. It offers a response time of 2 seconds and operates on ±12 VDC voltage. The meter provides a linear 0-5 VDC and 4-20 mA output. Its display is 90° tiltable and 3-1/2 digit. The wetted material options include anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. It has a pressure limit of 1000 psig (68.9 bar) and a process connection with various sizes. The meter has a particulate size tolerance of 5 microns and a repeatability of ±0.25% of FS. It ensures leak integrity with a rate of 1 x 10-9 sccs of Helium.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
