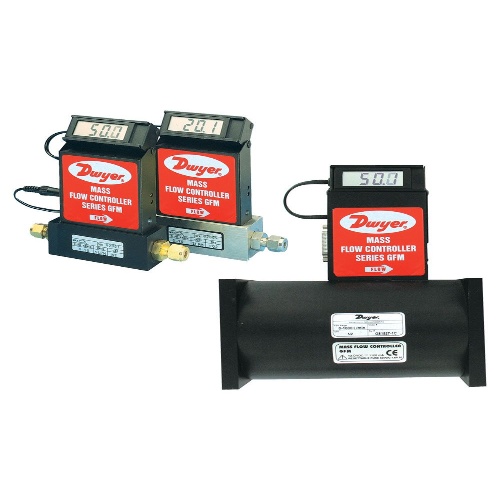

Dwyer GFM-2105 Gas Mass Flow Meter
$2,198$2,638 (-17%)
Dwyer GFM-2105 Gas Mass Flow Meter is a reliable and accurate instrument for measuring flow rates of clean gases. It has a temperature range of 32 to 122°F (0 to 50°C) and offers an accuracy of ±1% FS. The response time is 2 seconds and it operates on ±12 VDC voltage. It provides a linear output of 0-5 VDC and 4-20…
Dwyer GFM-2105 Gas Mass Flow Meter is a reliable and accurate instrument for measuring flow rates of clean gases. It has a temperature range of 32 to 122°F (0 to 50°C) and offers an accuracy of ±1% FS. The response time is 2 seconds and it operates on ±12 VDC voltage. It provides a linear output of 0-5 VDC and 4-20 mA. The display is tiltable and shows 3-1/2 digit readings. The wetted material is anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. The pressure limit is 1000 psig (68.9 bar) and the process connection options vary based on flow rates. It has a particulate size of 5 microns and a leak integrity of 1 x 10-9 sccs of Helium.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
