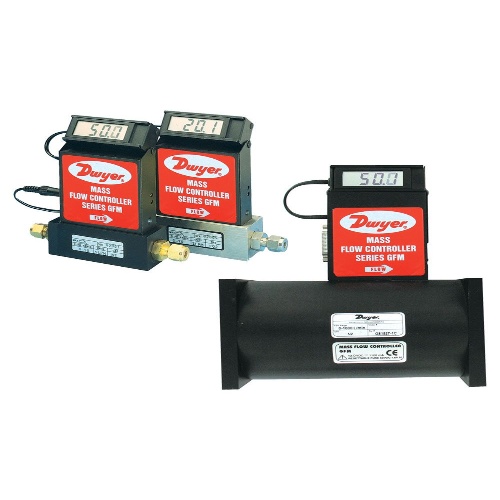

Dwyer GFM-2107 Gas Mass Flow Meter
$2,198$2,638 (-17%)
Dwyer GFM-2107 Gas Mass Flow Meter accurately measures gas flow rates with a temperature range of 32 to 122°F. It has a ±1% FS accuracy over a certain temperature and pressure range. It has a 2-second response time and operates on ±12 VDC. This meter provides a linear 0-5 VDC and 4-20 mA output. It is compatible with…
Dwyer GFM-2107 Gas Mass Flow Meter accurately measures gas flow rates with a temperature range of 32 to 122°F. It has a ±1% FS accuracy over a certain temperature and pressure range. It has a 2-second response time and operates on ±12 VDC. This meter provides a linear 0-5 VDC and 4-20 mA output. It is compatible with clean gases and has a 90° tiltable display. The wetted material is made of anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. It has a pressure limit of 1000 psig and several process connection options. The GFM-2107 has a particulate size of 5 microns and a ±0.25% FS repeatability. It also ensures leak integrity with a 1 x 10-9 sccs of Helium.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
