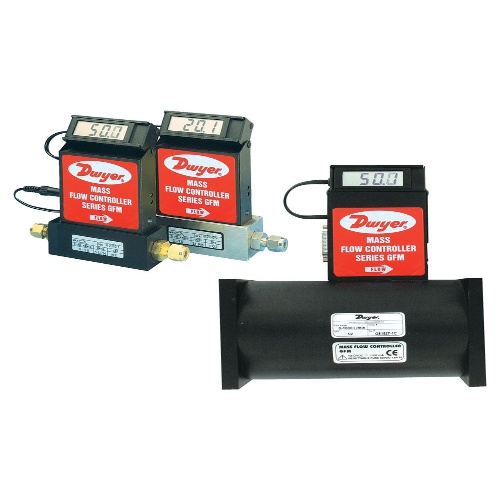

Dwyer GFM-2131 Gas Mass Flow Meter
$3,347
Dwyer GFM-2131 Gas Mass Flow Meter accurately measures flow rates of clean gases. It has a temperature range of 32 to 122°F and an accuracy of ±1% FS. The response time is 2 seconds and it operates on ±12 VDC voltage. It provides linear outputs of 0-5 VDC and 4-20 mA. The 90° tiltable display is easy to read. The…
Dwyer GFM-2131 Gas Mass Flow Meter accurately measures flow rates of clean gases. It has a temperature range of 32 to 122°F and an accuracy of ±1% FS. The response time is 2 seconds and it operates on ±12 VDC voltage. It provides linear outputs of 0-5 VDC and 4-20 mA. The 90° tiltable display is easy to read. The wetted material is anodized aluminum, brass, 316 SS, and fluoroelastomer o-rings. It has a pressure limit of 1000 psig and uses various process connections. The product has a particulate size of 5 microns, a repeatability of ±0.25% of FS, and excellent leak integrity.
Specifications
| (Instrument-Sensor) Application | Gas |
|---|---|
| Component | Flow Meter |
| (Instrument-Sensor) Measurement Accuracy | 1.0% |
| (Instrument-Sensor) Temperature Range | 32 – 122°F/0 – 50°C |
| (Instrument-Sensor) Measurement Accuracy | 1.5% |
| (Instrument-Sensor) Type | Gas Mass |
| Manufacturer | Dwyer Instruments |
Features
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Actual gas flow is displayed in engineering units on a 3-digit, 90° tiltable LCD readout
Units can be used with Series GFT Flow Totalizer for applications requiring totalization
Series GFM includes a NIST traceable certificate.
