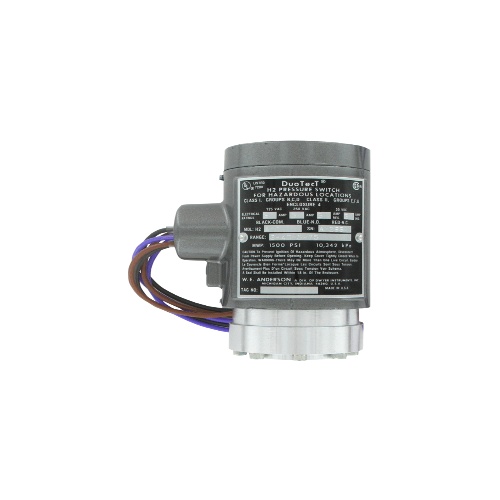

Dwyer H2S-2 Dual-Action Explosion-Proof Pressure Switch
$1,445$1,734 (-17%)
Dwyer H2S-2 is a Dual-Action Explosion-Proof Pressure Switch with a temperature range of -20°C to 90°C. It is UL listed explosion-proof and meets NEMA 4X (IP66) standards. The switch has a 316 SS chamber with an FEP diaphragm and Buna-N O-ring as standard wetted materials. It has a pressure limit of 1500 psig and…
Dwyer H2S-2 is a Dual-Action Explosion-Proof Pressure Switch with a temperature range of -20°C to 90°C. It is UL listed explosion-proof and meets NEMA 4X (IP66) standards. The switch has a 316 SS chamber with an FEP diaphragm and Buna-N O-ring as standard wetted materials. It has a pressure limit of 1500 psig and features two SPDT snap switches.
Specifications
| (Instrument-Sensor) NEMA Protection | NEMA 4X |
|---|---|
| (Instrument-Sensor) IP Protection | IP66 |
| Component | Pressure Switch |
| (Instrument-Sensor) Type | Explosion-Proof |
| (Instrument-Sensor) Temperature Range | 275°F/135°C |
| (Instrument-Sensor) Temperature Range | -20 – 90°C/ -4 – 184°F |
| Manufacturer | Dwyer Instruments |
Features
Explosion-proof and weather-proof housing provides device protection for outdoor use or harsh environment operation
UL listed, CSA approved to support rigorous process applications and regulations
Independent piston action design for either gas or liquid allows switches to active together or independently based on settings
Mounting in any position and not affected by vibration provides reliable switching for equipment
