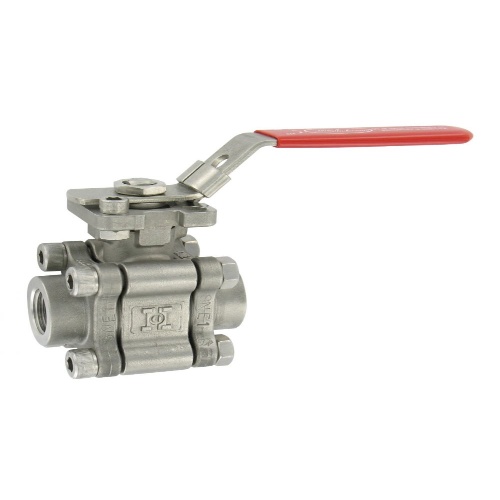

Dwyer HBV-M08 Hastelloy® C Ball Valve
$15,768
Dwyer HBV-M08 is a Hastelloy® C Ball Valve designed for temperatures ranging from -20 to 425°F (-29 to 218°C). It is suitable for use with gases, steam, and liquids compatible with its wetted materials. The valve has a pressure limit of 2000 psi (137.9 bar) and a process connection of 1/4″ Female NPT. Wetted materials…
Dwyer HBV-M08 is a Hastelloy® C Ball Valve designed for temperatures ranging from -20 to 425°F (-29 to 218°C). It is suitable for use with gases, steam, and liquids compatible with its wetted materials. The valve has a pressure limit of 2000 psi (137.9 bar) and a process connection of 1/4" Female NPT. Wetted materials include ASTM 494 Type CW12MW (Hastelloy® C) for the valve body, end caps, ball, and stem, while the seat, body seal, and stem packing are made of TFM. Additional features include a handle and handle cover made of 304 SS and vinyl, respectively.
Specifications
| (Instrument-Sensor) Application | Liquid |
|---|---|
| (Instrument-Sensor) Application | Gas |
| (Instrument-Sensor) Application | Steam |
| Component | Valve |
| Sub Component | Hastelloy® C Ball Valve |
| (Instrument-Sensor) Temperature Range | -20 – 425°F/-29 – 218°C |
| Manufacturer | Dwyer Instruments |
Features
Series HBV Hastelloy® C Ball Valve incorporates several innovative design features for improved process performance
The ISO 5211 mounting pad facilitates direct mounting of pneumatic and electric actuators
In combination with our high-cycle, live-loaded stem packing system, the HBV series ball valve is an ideal choice for all your automation requirements.
