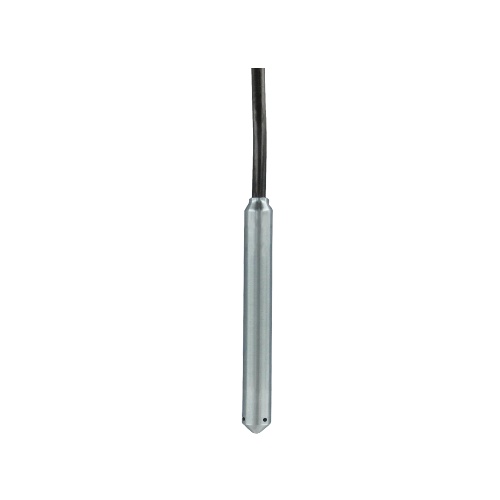

Dwyer MBLT-2SB-IVPF-350-370 Miniature Submersible Level Transmitter
$1,510$1,812 (-17%)
Dwyer MBLT-2SB-IVPF-350-370 is a miniature submersible level transmitter suitable for temperature ranges from -4 to 176°F (-20 to 80°C). It offers accuracy of ±0.25% or ±0.10% FS, with configured ranges of 4.3 to 4.9 psi (10 to 11.54″ w.c.) having ±0.30% FS accuracy. Power requirement ranges from 10 to 33 VDC for…
Dwyer MBLT-2SB-IVPF-350-370 is a miniature submersible level transmitter suitable for temperature ranges from -4 to 176°F (-20 to 80°C). It offers accuracy of ±0.25% or ±0.10% FS, with configured ranges of 4.3 to 4.9 psi (10 to 11.54" w.c.) having ±0.30% FS accuracy. Power requirement ranges from 10 to 33 VDC for current output and 8 to 33 VDC for voltage output. It provides an output signal of 4 to 20 mA DC 2-wire or 0 to 5V* (model dependent). The transmitter is designed for compatibility with liquids, featuring a 316 SS body and nose, polyether polyurethane or ETFE cable, fluoroelastomer seals, and polyolefin label. With a pressure limit of 2x FS and surge/lightning protection, it is a reliable choice for various applications.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Application | Liquid |
| Component | Miniature Submersible Level Transmitter |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 33 VDC |
| (Instrument – Sensor) Supply Voltage | 8 – 33 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
