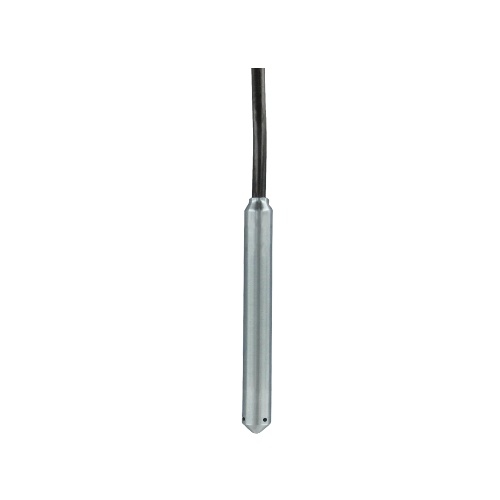

Dwyer MBLT-2SB-IVPF-690-710 Miniature Submersible Level Transmitter
$2,831
Dwyer MBLT-2SB-IVPF-690-710 is a miniature submersible level transmitter with an operating temperature ranging from -4 to 176°F (-20 to 80°C). It offers high accuracy of ±0.25% or ±0.10% FS, and even better accuracy of ±0.30% FS for configured ranges of 4.3 to 4.9 psi (10 to 11.54″ w.c.). With a current output of 10…
Dwyer MBLT-2SB-IVPF-690-710 is a miniature submersible level transmitter with an operating temperature ranging from -4 to 176°F (-20 to 80°C). It offers high accuracy of ±0.25% or ±0.10% FS, and even better accuracy of ±0.30% FS for configured ranges of 4.3 to 4.9 psi (10 to 11.54" w.c.). With a current output of 10 to 33 VDC or voltage output of 8 to 33 VDC, it has a quick response time of less than 50 ms. The transmitter is compatible with various liquids and features a 316 SS body and nose, polyether polyurethane or ETFE cable, fluoroelastomer seals, and a polyolefin label. It has a 2x FS pressure limit and a thermal effect of ±0.45% or ±0.30% FS TEB. Surge/lightning protection is provided as per EN61000-4-5, Class 5.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Application | Liquid |
| Component | Miniature Submersible Level Transmitter |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 33 VDC |
| (Instrument – Sensor) Supply Voltage | 8 – 33 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
