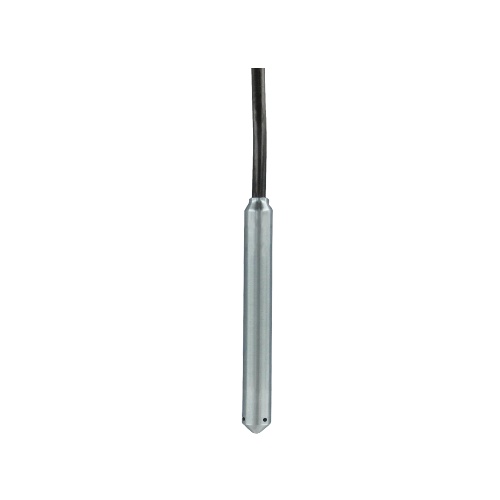

Dwyer MBLT-2SB-IVPM-100-106 Miniature Submersible Level Transmitter

Dwyer MBLT-2SB-IVPM-100-106 is a miniature submersible level transmitter designed for monitoring compatible liquids. It has an operating temperature range of -4 to 176°F (-20 to 80°C) and offers accuracy of ±0.25% or ±0.10% FS, with ±0.30% FS accuracy for specific configured ranges. The transmitter has a quick response time of < 50 ms and can be powered by a current output of 10 to 33 VDC or a voltage output of 8 to 33 VDC. It provides an output signal of 4 to 20 mA DC 2-wire or 0 to 5V* (model dependent), and comes with surge/lightning protection. The wetted materials include a 316 stainless steel body and nose, polyurethane or ETFE cable, fluoroelastomer seals, and a polyolefin label. The transmitter can handle pressure up to 2x FS and has a thermal effect of ±0.45% FS TEB for 0.25% accuracy and ±0.30% FS TEB for 0.10% accuracy. It is suitable for mounting below the monitored point and has electrical connections in the form of a wire pigtail.

Slender 0.63˝ (16 mm) diameter design fits in narrow openings

Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap

Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation

Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel

Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer

Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
