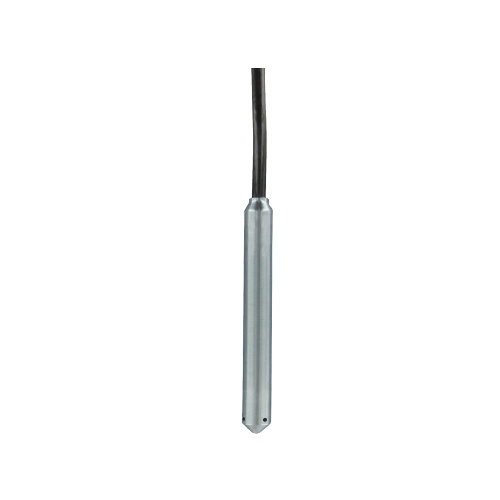

Dwyer MBLT-2SB-IVPM-200-206 Miniature Submersible Level Transmitter
$2,274$2,729 (-17%)
Dwyer MBLT-2SB-IVPM-200-206 is a miniature submersible level transmitter suitable for use in compatible liquids. It operates in temperatures ranging from -4 to 176°F (-20 to 80°C) and offers an accuracy of ±0.25% or ±0.10% FS. With a response time of less than 50 ms, it provides reliable measurements. The transmitter…
Dwyer MBLT-2SB-IVPM-200-206 is a miniature submersible level transmitter suitable for use in compatible liquids. It operates in temperatures ranging from -4 to 176°F (-20 to 80°C) and offers an accuracy of ±0.25% or ±0.10% FS. With a response time of less than 50 ms, it provides reliable measurements. The transmitter has a current output of 10 to 33 VDC or a voltage output of 8 to 33 VDC with a maximum load of 5 mA. It is surge/lightning protected and features a thermal effect within ±0.45% FS TEB for 0.25% accuracy and ±0.30% FS TEB for 0.10% accuracy.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Application | Liquid |
| Component | Miniature Submersible Level Transmitter |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 33 VDC |
| (Instrument – Sensor) Supply Voltage | 8 – 33 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
