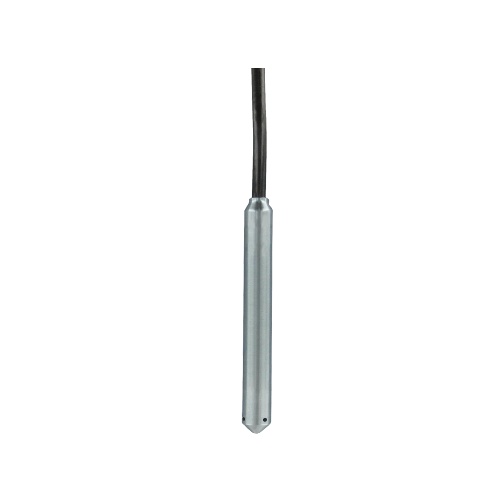

Dwyer MBLT-2SB-IVPM-60-66 Miniature Submersible Level Transmitter
$1,127$1,353 (-17%)
Dwyer MBLT-2SB-IVPM-60-66 is a miniature submersible level transmitter designed for measuring liquid levels. It operates in a temperature range of -4 to 176°F (-20 to 80°C) with an accuracy of ±0.25% or ±0.10% FS. It has a fast response time of < 50 ms and features a 4 to 20 mA output signal. The transmitter is…
Dwyer MBLT-2SB-IVPM-60-66 is a miniature submersible level transmitter designed for measuring liquid levels. It operates in a temperature range of -4 to 176°F (-20 to 80°C) with an accuracy of ±0.25% or ±0.10% FS. It has a fast response time of < 50 ms and features a 4 to 20 mA output signal. The transmitter is constructed with 316 SS body and nose, polyurethane or ETFE cable, fluoroelastomer seals, and surge/lightning protection. It can be powered with a current output of 10 to 33 VDC or voltage output of 8 to 33 VDC. Suitable for compatible liquids, the transmitter can handle a pressure limit of 2x FS.
Specifications
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
|---|---|
| (Instrument-Sensor) Application | Liquid |
| Component | Miniature Submersible Level Transmitter |
| Manufacturer | Dwyer Instruments |
| (Instrument – Sensor) Supply Voltage | 10 – 33 VDC |
| (Instrument – Sensor) Supply Voltage | 8 – 33 VDC |
| (Instrument-Sensor) Temperature Range | -4 – 176 °F/-20 – 80°C |
Features
Slender 0.63˝ (16 mm) diameter design fits in narrow openings
Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
Body top is 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation
Low power voltage output models are ideal for remote level monitoring with rechargeable battery and solar panel
Maintenance free filter on vent tube eliminates particulate water droplets from entering the transducer
Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients
