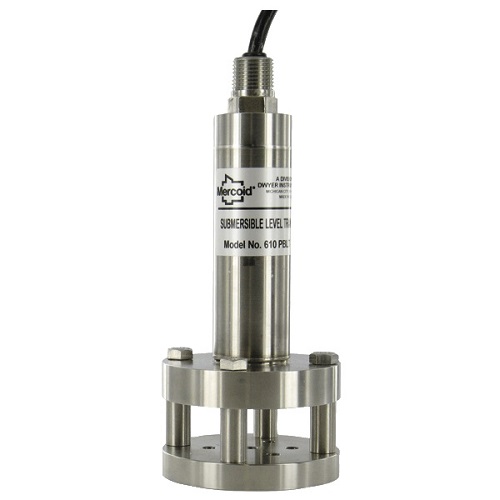

Dwyer Mercoid PBLTX-20-60 Submersible Level Transmitter
$1,019$1,222 (-17%)
Dwyer Mercoid PBLTX-20-60 Submersible Level Transmitter Series SBLTX Dirty Liquid Submersible Level Transmitter. Class 1 Div 1 intrinsically safe. Perfect for Sludge and Slurries. Dirty Application Submersible Level Transmitter for dirty applications like wastewater and slurry applications. Recommended Accessories:…
Dwyer Mercoid PBLTX-20-60 Submersible Level Transmitter Series SBLTX Dirty Liquid Submersible Level Transmitter. Class 1 Div 1 intrinsically safe. Perfect for Sludge and Slurries. Dirty Application Submersible Level Transmitter for dirty applications like wastewater and slurry applications. Recommended Accessories: A-625 Cable Hanger, A-297 Dessicant Filter.
Specifications
| Component | Submersible Level Transmitter |
|---|---|
| (Instrument-Sensor) Size | 3.4375" |
| (Instrument-Sensor) Type | Protective Cage |
| (Instrument-Sensor) Output Signal Type | 4-20 Ma 2 Wire (Loop Powered) |
| (Instrument-Sensor) Measurement Accuracy | 0.25% |
| (Instrument-Sensor) Application | Dirty Liquids |
| (Instrument-Sensor) Span | 46' |
| Manufacturer | Dwyer Instruments |
| (Instrument-Sensor) Hazardous Location Class | Class I Div. I Intrinsically Safe |
| (Instrument – Sensor) Supply Voltage | 12 VDC |
| (Instrument – Sensor) Supply Voltage | 24 VDC |
| (Instrument-Sensor) Temperature Range | 0 °F – 176 °F |
Features
Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids
Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models
Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier
Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility
Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation
Minimal downtime with standard 72 hour lead time
